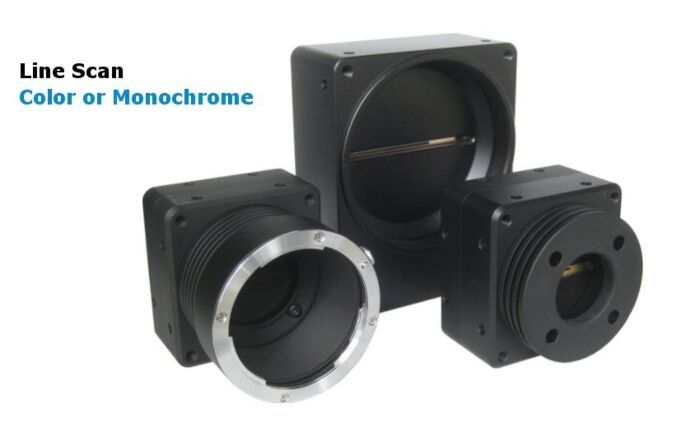

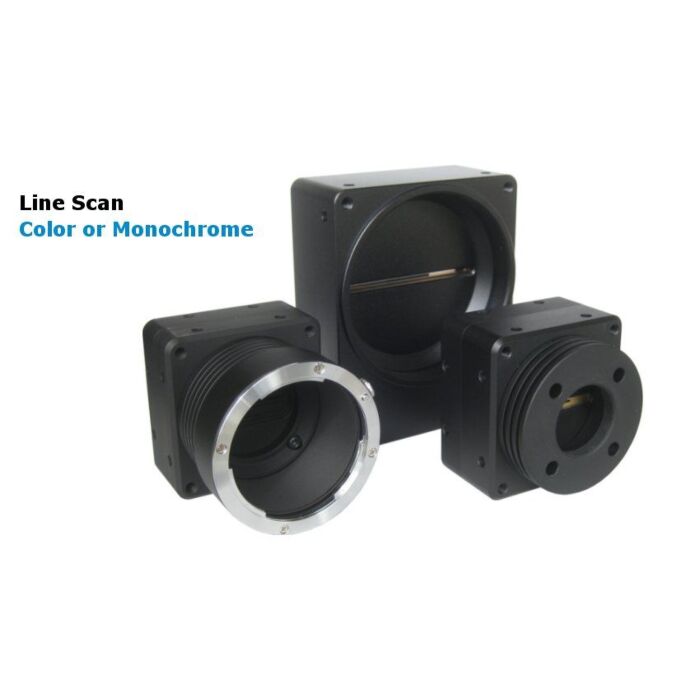

Omron FS-B2KU7CL (FSB2KU7CL) 2MP Monochrome Line Scan CL Camera

Sentech’s FS-B2KUCL 2k Line Scan Camera Link camera features an 80 kHz Line Rate, Color or Monochrome models, Camera Link Output, and more. (CMOS Sensor: DR-2K-7 - AWAIBA)

$0.00 Please call for pricing

SKU

FS-B2KU7CL

Overview

The camera also features Field Update Capabilities, Dual Line Scan, and C, F, or M42 Mounts.

Features:

CMOS Sensor

2K Pixels

High-Speed Camera Link Output

F, C Mount

Applications:

Machine Vision

Factory Automation

Factory Inspection

Specifications

Imaging


Model No	FS-B2KU7CL
Image Sensor	2k CMOS image sensor DR-2k-7 (AWAIBA)
Active Pixels	2,048 pixels
Pixel Size	7 (H) x 7 (V) µm (7 µm pitch)
Photo Array Length	14.336 mm

Function


Total Data Rate	-
- Camera Link Base	85MHz x 2 TAP: 80kHz
- Camera Link Base	80MHZ x 2 TAP: 75kHz
- Camera Link Base	50MHz x 2 TAP: 47kHz
Video Output	-
- Camera Link Base	8 bit / 10 bit
Power	-
- Input Voltage	+12 Vdc ~ +24 Vdc
- Consumption	2.8W (TYP)
Communication	RS232 via CameraLink® connector
Functions	Anti-blooming, High-speed exposure control, External trigger control, Flat Field Correction(FFC)
Fill Factor	100%
Responsivity (except opck=11) gbdt=1	19DN/nj/cm2 (@8bit)
Responsivity (except opck=11) gbdt=0	77DN/nj/cm2 (@8bit)
Responsivity (opck=11) gbdt=1	38DN/nj/cm2 (@8bit)
Responsivity (opck=11) gbdt=0	155Dn/nj/cm2 (@8bit)

Mechanical


Dimensions	56 (W) x 58 (H) x 26.5 (D) mm
Lens Mount	F Mount, C Mount
Weight	Approx. 250g
Interface Connector	Camera Link connector (MDR) x 2; Power connector (6pin connector)
