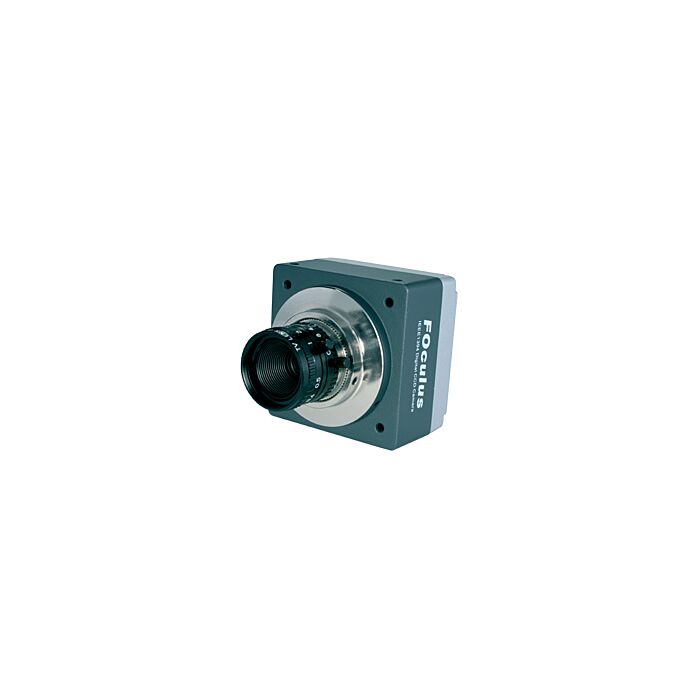

FO114B/C IEEE1394 Digital CCD Camera

Quick Overview

IEEE1394 Digital CCD Camera
Overview

Features:

  • 1/4” Progressive Scan CCD Image Sensor
  • Resolution 330,000 (square pixel) VGA
  • IEEE1394.a acc. IIDC v.1.3 Interface
  • FO114B =B/W • FO114C =Color
  • Hard-/Software Trigger
  • External Trigger
  • Frame rate 60fps
  • Camera setting via IEEE1394 Interface
  • Solid and highly shock-resistant camera casing

  • Application:

  • Machine Vision
  • Factory Automation
  • Quality Control
  • Specifications
      FO114B (B/W) FO114C (Color)
    Image Sensor
    1/4" IT CCD ICX098BL
    1/4" IT CCD ICX098BQ
    Active Pixel 330.000 pixel, 659 (H) x 494 (V) VGA
    Data Path 8bit B/W 8 bit Raw RGB
    Pixel Size 5.60 (H) x 5.60 (V) µm
    Chip size 4.60 (H) x 3.97 (V) mm
    Scanning System Progressive Scan
    Frame Rate 60, 30, 15, 7.5, 3.75, 1.875 (fps)
    Synchronization Internal
    Digital Interface IEEE1394a
    Software Interface Acc. IIDC v. 1.3
    Gain Control 0-27 dB 0-25 dB
    Gamma 1.0
    Strobe Output Signal Option
    RS-232C Comm. Option
    S/N Ratio 56 dB or better
    Power Supply/Consumption 8-30 VDC via IEEE1394 Cable, approx. 225 mA
    Transfer rate 400Mbps
    Trigger mode External Trigger
    White Balance Auto Manual
    Shutter Speed 1 µsec ~ 65 sec
    Gain Adjustment +/- 6dB
    Lens Mount C-Mount
    External Dimensions/Weight 64 (W) x 64 (H) x 60 (D) mm / approx. 300g

    Accessories

    • IEEE1394 cable, 6-pin

    • SDK (Software Development Kit)

    • OHCI Card

    • Tripod Adapter Plate

    • Trigger Cable 12-pin
