  • FL-HC6Z0810-VG | Ricoh Lenses Image #1

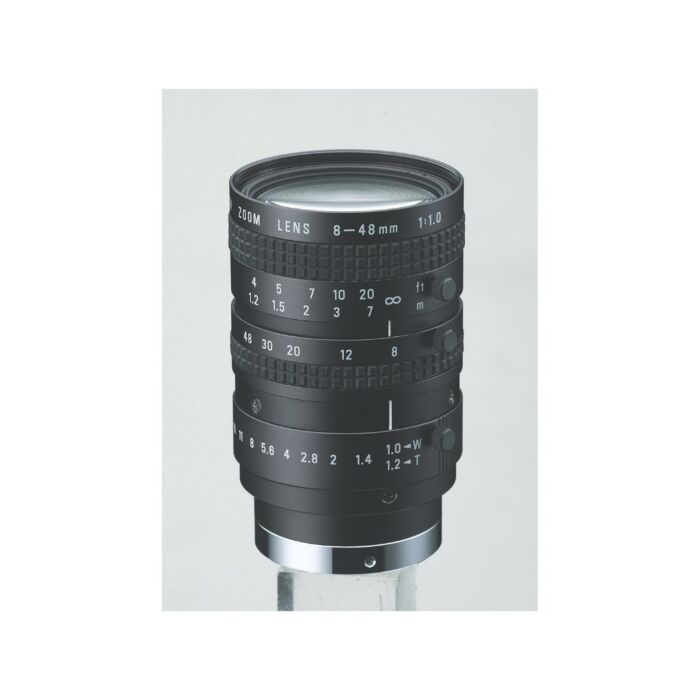

Ricoh FL-HC6Z0810-VG 1/2" 8-48mm (VGA) Manual Iris Lens

Quick Overview

Ricoh FL-HC6Z0810-VG is a 1/2" 6x zoom, 8-48mm VGA resolution lens with manual iris.
$289.80

Availability: In stock

Overview

Ricoh FL-HC6Z0810-VG Manual zoom lens with locking screws for focus, zoom and iris.



Features:



  • Standard lenses for machine vision use
  • Compatible with VGA-class cameras
  • Production line handling cameras from 1/2" to 1" formats
  • Lock screws as standard vibration-control measures
  •


    Applications:



  • pattern matching
  • component positioning
  • missing-part inspection
  • board mounting
  • inspection of pharmaceuticals
  • produce
  • grains
Specifications
Format size 1/2, 1/3" format
Focal length 8-48 mm
Maximum aperture ratio 1:1.0-1.2
Iris range 1.0-22
Mount C
Horizontal
angle of view
1/3" format 33.0-5.8°
1/2" format 43.3-7.7°
1/1.8" format -
2/3" format -
Minimum object distance 0.75 m
Back focal length 13.65 mm
Filter size 55 P=0.75 mm
Dimensions φ57×95 mm
Weight 430 g
Remarks Manual Iris, Lock screws
