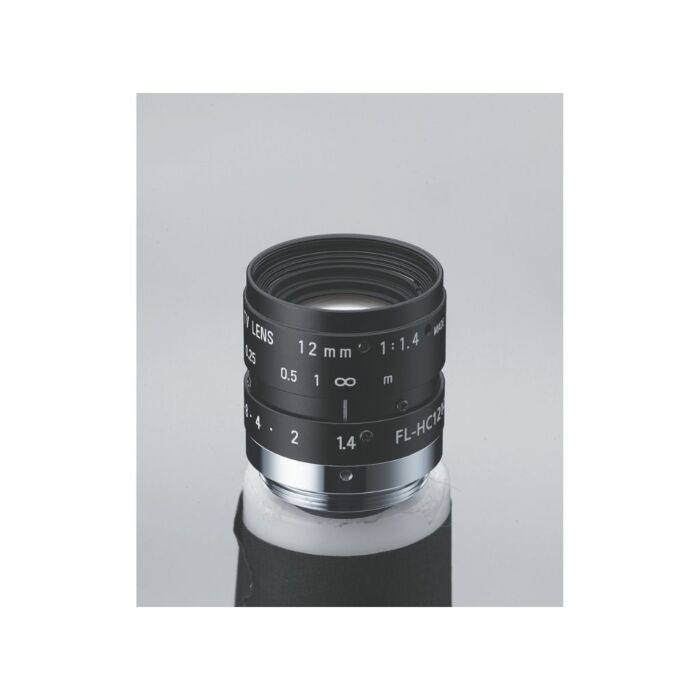

RICOH FL-HC1214-2M (C61232KP) (FLHC12142M) 1/2" (2 MP) 1/2" Manual Iris Lens

The FL-HC1214-2M is part of the 2 mega-pixel type lenses for a wide range of applications Ricoh manufacturers.

$0.00 Please call for pricing

SKU

FL-HC1214-2M

Overview

These manual-iris lenses are your best choice for image processing data capture at 2 mega-pixels. With their compact size and high performance, they deliver great results for high-precision manufacturing inspection (chip mounters, wafers, electronic substrates, etc.).

Features:

High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors

Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery

With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use

They greatly reduce distortion that causes problems in image measurement and recognition

Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features

Applications:

high-precision manufacturing inspection

chip mounters

wafers

electronic substrates

Specifications

Format size		1/2, 1/3" format
Focal length		12 mm
Maximum aperture ratio		1：1.4
Iris range		1.4-16
Mount		C
Horizontal angle of view	1/3" format	21.9°
	1/2" format	28.9°
	1/1.8" format	-
	2/3" format	-
Minimum object distance		0.25 m
Back focal length		11.50 mm
Filter size		27 P=0.5 mm
Dimensions		φ29.5×28.5 mm
Weight		55 ｇ
Remarks		Focus & Iris lock screws
