  • FL-HC0614-2M | 2MP Lenses | Ricoh Lenses Image #1

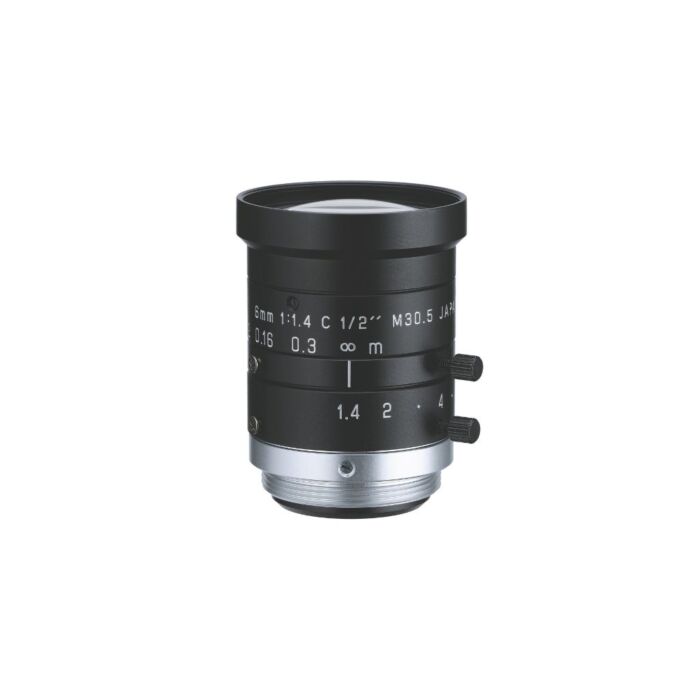

Ricoh FL-HC0614-2M 1/2" (2MP) 6mm Manual Iris Lens

Quick Overview

The RICOH FL-HC0614-2M is a Fixed focal length lens, high-resolution, compact Megapixel lens, with locking screws for C-/CS-Mount cameras.
$168.00

Availability: In stock

Overview

The FL-HC0614-2M is a balanced 2/3" lens for classic machine vision applications. When combined with the CMV 2000, IMX 249 and IMX 174 sensors increased vignetting can occur depending on the application.



Features:



  • Format: 1/2"
  • Focal Length: 6mm
  • Aperture: F1.4
  • Iris Type: Manual Iris
  • Mount: C-Mount w/ Locking Screws
  •


    Applications:



  • high-precision manufacturing inspection
  • chip mounters
  • wafers
  • electronics
  • substrates
  • Specifications
    Format size 1/2, 1/3" format
    Focal length 6 mm
    Maximum aperture ratio 1:1.4
    Iris range 1.4-16
    Mount C
    Horizontal
    angle of view
    1/3" format 44.5°
    1/2" format 57.4°
    1/1.8" format -
    2/3" format -
    Minimum object distance 0.1 m
    Back focal length 12.32 mm
    Filter size -
    Dimensions φ32×37.5 mm
    Weight 58 g
    Remarks Focus & Iris lock screws
    No Video available
    FL-HC0614-2M
