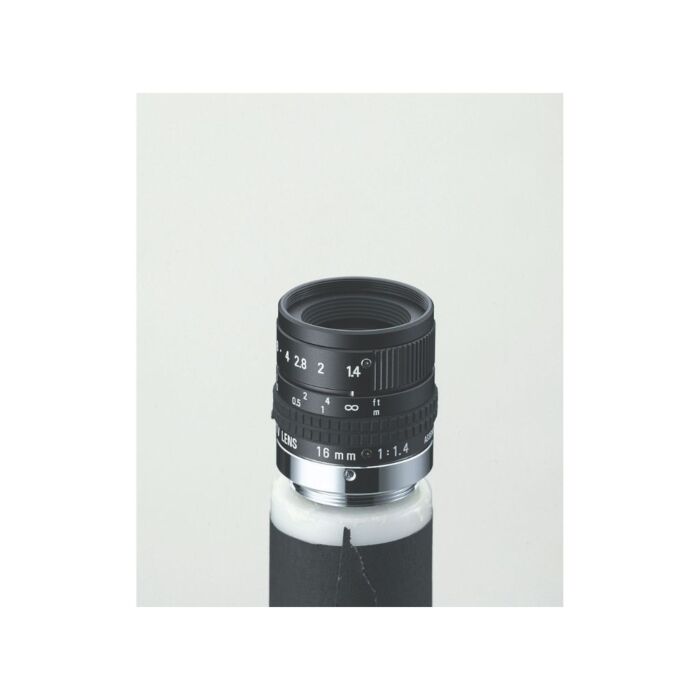

RICOH FL-CC1614A-VG (FLCC1614AVG) 2/3" 16mm (VGA) Manual Iris Lens

RICOH Fl-CC1614A-VG is part of the outstanding VGA line of Ricoh Cameras.
SKU
FL-CC1614A-VG-Ricoh

The FL-CC1614A-VG is built for a wide variety of machine vision applications.


Features:


  • Standard lenses for machine vision use
  • Compatible with VGA-class cameras
  • Production line handling cameras from 1/2" to 1" formats
  • Lock screws as standard vibration-control measures

  • Applications:


  • pattern matching
  • component positioning
  • missing-part inspection
  • board mounting
  • inspection of pharmaceuticals
  • produce
  • grains
  • Format size 2/3, 1/2, 1/3" format
    Focal length 16 mm
    Maximum aperture ratio 1:1.4
    Iris range 1.4-22
    Mount C
    Horizontal Angle of View - 1/4" format 12.7°
    Horizontal Angle of View - 1/3" format 16.9°
    Horizontal Angle of View - 1/2" format 22.5°
    Horizontal Angle of View - 2/3" format 30.7°
    Minimum object distance 0.3 m
    Back focal length 13.22 mm
    Filter size 27 P=0.5 mm
    Dimensions φ30x33 mm
    Weight 58 g
    Remarks Focus & Iris lock screws
