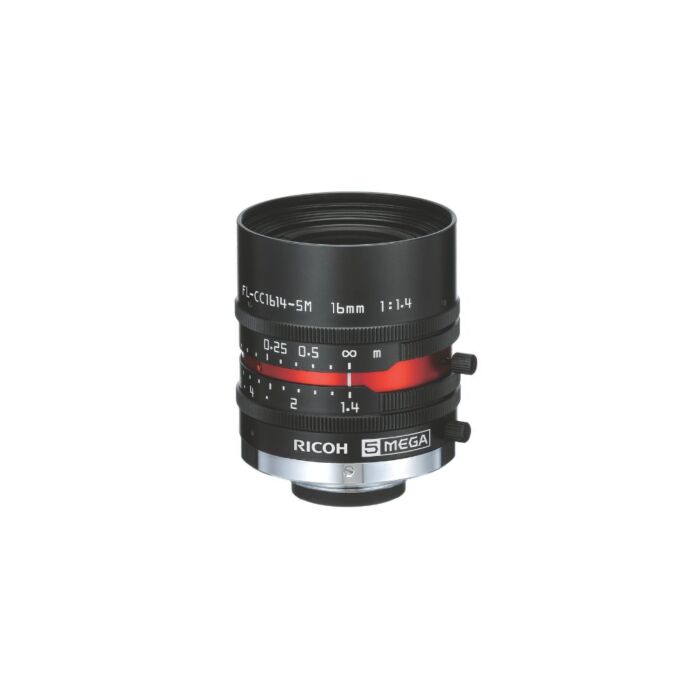

RICOH FL-CC1614-5M (C31635KP) (FLCC16145M) 2/3" (5MP) 16mm Manual Iris Lens

The range of the FL-CC1614-5M Ricoh lens is designed to be installed into machine vision systems.

$0.00 Please call for pricing

SKU

FL-CC1614-5M-Ricoh

Overview

The FL-CC1614-5M (C31635KP) is a manual iris lens ideal for inspection, pattern matching, and alignment uses in which images with high definition from edge to edge definition.

Features:

High resolution and high contrast

Φ43 mm compact design

Extremely small level of optical distortion

Bright to the periphery

Applications:

Visual inspection of printed circuit boards and sheet materials (metal, paper, film)

Verifying type on printed matter

Inspecting the shape, color, and surface of food and pharmaceuticals for errors

Confirming hairline cracks and other surface defects on diameter sheet metals

Checking for missing pixels on LCD monitors

Visual and foreign substance inspections on everything from precision machined items to containers

In capturing precision machining products such as electronic substrates and wafers

Specifications

Format Size	2/3, 1/1.8, 1/2, 1/3" format
Focal Length	16mm
Minimum Aperture Ratio	1:1.4
Iris Range	1.4～16
Mount	C
Horizontal Angle Of View 1/3” Format	17.1°
Horizontal Angle Of View 1/2” Format	22.7°
Horizontal Angle Of View 1/1.8” Format	25.4°
Horizontal Angle Of View 2/3” Format	30.8°
Minimum Object Distance	0.1m
Back Focal Length	11.5mm
Filter Size	40.5 P=0.5mm
Dimensions	φ43mmx47mm
Weight	140g
Remarks	Focus & Iris lock screws

Downloads

Ricoh machine vision lenses - VGA manual iris_1
