  • FL-CC1614A-2M

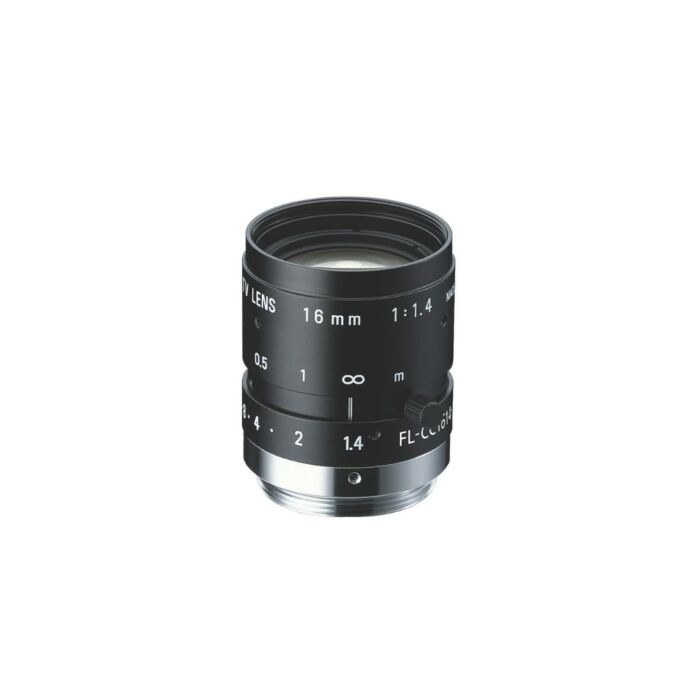

Ricoh FL-CC1614-2M 2/3" (2MP) 16 mm Manual Iris Lens

Quick Overview

The FL-CC1614-2M is a C-mount lens with a fixed focal length of 16 mm and an aperture range from F1.4 - F16.
Overview

The RICOH FL-CC1614-2M is a balanced 2/3" lens for classic machine vision applications.



Features:



  • Format: 2/3"
  • Focal Length: 16mm
  • Aperture: F1.4
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •


    Applications:



  • High-Precision Manufacturing
  • Inspection (chip mounters, wafers, electronic substrates)
  • Machine Vision
  • Specifications
    Format Size 2/3"
    Focal Length 16 mm
    Maximum aperture ratio 1:1.4
    Iris Range  1.4-16
    Mount C
    Horizontal Angle of View 1/3" Format 17.1°
    Horizontal Angle of View 1/2" Format 22.7°
    Horizontal Angle of View 1 1/8" Format 25.5°
    Horizontal Angle of View 2/3" Format 31.0°
    Min. Object Distance 0.25 mm
    Back Focal Length 14.61 mm
    Filter Size 27 P=0.5 mm
    Dimensions φ29.5×33.2 mm
    Weight 63 g
    Comments Focus & Iris lock screws
