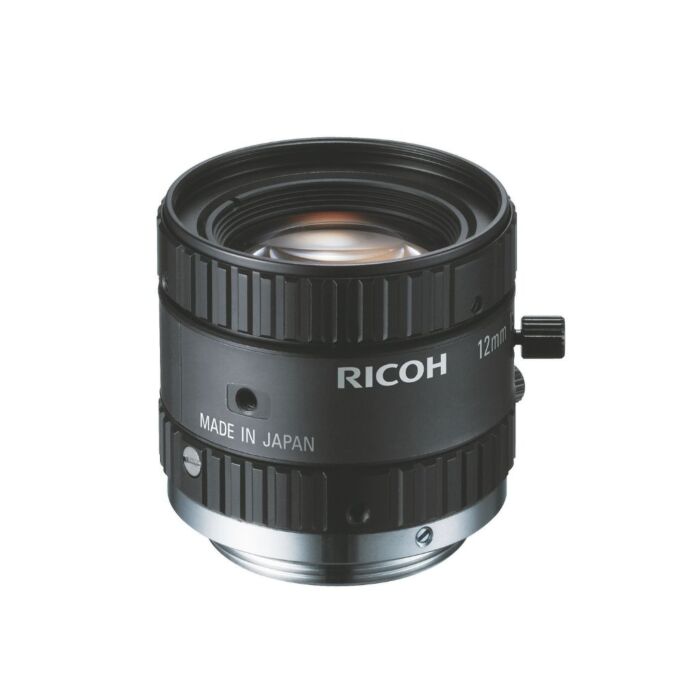

RICOH FL-CC1214-2M (FLCC12142M) 2/3" (2MP) 12 mm Manual Iris Lens

The RICOH FL-CC1214-2M is a Fixed focal length lens, high-resolution, compact Megapixel lens, with locking screws for C- and CS-Mount cameras.

$0.00 Please call for pricing

SKU

FL-CC1214-2M-Ricoh

Overview

The RICOH FL-CC1214-2M is a 12mm fixed focal length high-performance lens that includes high-resolution, compact size. Built to handle environments with vibration, easy to use, reliable focus and iris locking mechanisms as standard feature, the FLCC1214-2M is perfect for your application.

Features:

High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors

Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery

With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use

They greatly reduce distortion that causes problems in image measurement and recognition

Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features

Applications:

high-precision manufacturing inspection

chip mounters

wafers

electronic substrates

Specifications

Format	1/2"
Mount	C
Focal Length	12.0mm
Iris Range	F1.4 - 16
Iris Type	Manual
Focus Control	Manual
Horizontal Angle Of View	28.9°
Minimum Object Distance	0.25m
Filter Size in MM	27 x 0.5
Dimensions in mm	29.5 x 28.5
Weight	55g
Temperature range	-20°C to 50°C
Comment	Diameter 29,5mm, KP: 3 lock screws each for aperture and focus plus 2 thumbed screws in the additional packaging; old part no.: C61232KP/H1214-M (KP)
