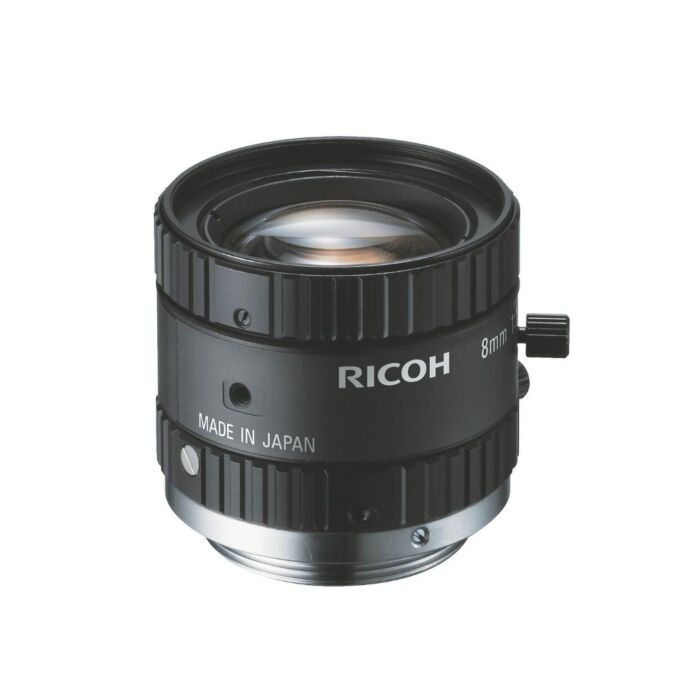

RICOH FL-CC0814-2M (FLCC08142M) 2/3" (5MP) 8mm Manual Iris Lens

The FL-CC0814-2M is a 2 mega-pixel type lenses for a wide range of applications
SKU
FL-CC0814-2M-Ricoh

The FL-CC0814-2M manual-iris lenses are your best choice for image processing data capture at 2 mega-pixels. With their compact size and high performance, they deliver great results.


Features:


  • High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
  • Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
  • With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use
  • They greatly reduce distortion that causes problems in image measurement and recognition
  • Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features
  •
    Applications:

  • high-precision manufacturing inspection
  • Chip mounters
  • wafers
  • electronic substrates
  • Format Size 2/3, 1/1.8, 1/2, 1/3" format
    Focal Length 8mm
    Maximum Aperture Ratio 1:1.4
    Iris Range 1.4~16
    Mount C
    Horizontal Angle Of View 1/3” Format 32.4°
    1/2” Format 42.5°
    1/1.8” Format 47.3°
    2/3” Format 56.3°
    Minimum Object Distance 0.1 m
    Back Focal Length 13.1 mm
    Filter Size 30.5 P=0.5 mm
    Dimensions 48×59.9 mm
    Weight 149g
    Remarks Focus & Iris lock screws
