  • FL-BC2528-VGUV | UV Lens Image #1

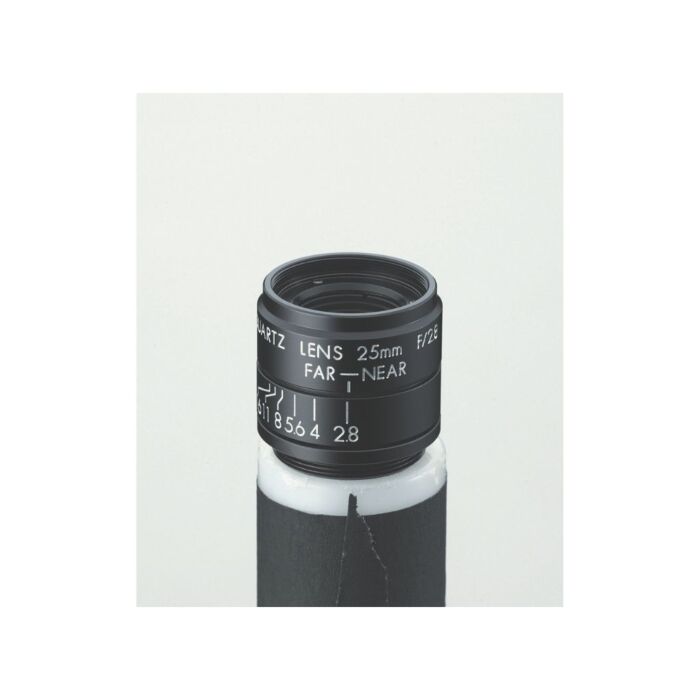

Ricoh FL-BC2528-VGUV 1" 25mm UV Lens

Quick Overview

FL-BC2528-VGUV is an optical system that employs optical-grade quartz glass for imaging in the near-ultraviolet region. This lens is optimized for application in the inspection of minute surfaces.
$1,097.60

Availability: In stock

Overview

The FL-BC2528-VGUV is a 1", 25mm UV Lens built for business and machine vision applications.



Features:



  • High-performance quartz glass, enabling the capture of sharp images in the near-ultraviolet region.
  • Extended wavelength range (230nm to 800nm), with peak performance at 365nm.
  • Compact design, ideal for integration into machine vision systems
  • Optimised for use with band pass filters and UV illumination to provide falsified documents detection
  •


    Applications:



  • detection of counterfeit banknotes
  • falsified documents and credit cards
  • surface inspection of circuit boards for soldering defects
Specifications
Specials compact, 30.0mm diameter
Format 1"
Mount C
Focal Length 25.0mm
Iris Range F2.8 - 16
Iris Type manual
Focus control manual
Horizontal Angle Of View 29.7°
Minimum Object Distance 0.23m
Filter size in mm 25.5
Dimensions in mm 30 x 25.4
Weight 33g
Temperature range -20°C to 50°C
Comment Wavelength: 230nm to 800nm; new Part No.: FL-BC2528-VGUV
