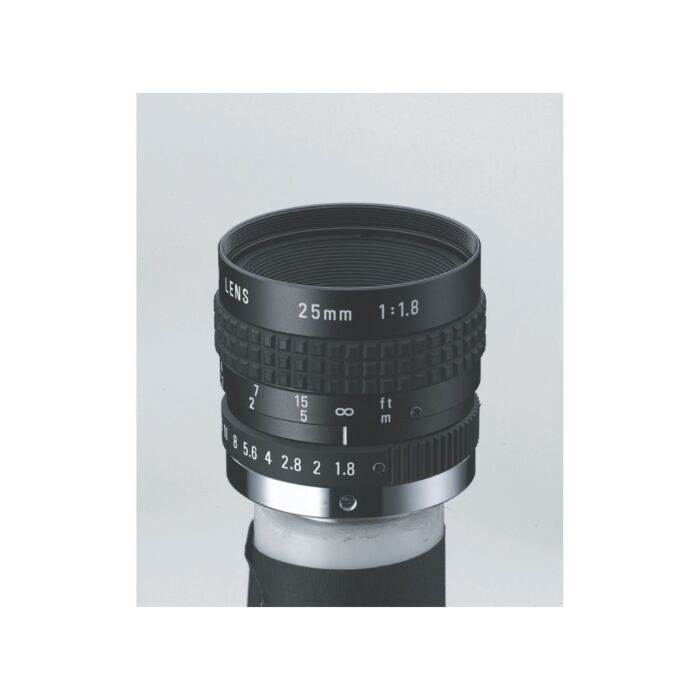

RICOH FL-BC2518-VG (C22516KP) (FLBC2518VG) 1" 25mm (VGA) Manual Iris Lens

RICOH FL-BC2518-VG 1" 25mm F1.8 Manual Iris C-Mount Lens w/ Locking Screws

$0.00 Please call for pricing

SKU

FL-BC2518-VG-Ricoh

The FL-BC2518-VG is part of Ricoh's extensive line of general-use lenses boasting high-performance lens technology.

Features:

Standard lenses for machine vision use

Compatible with VGA-class cameras

Production line handling cameras from 1/2" to 1" formats

Lock screws as standard vibration-control measures

Applications:

pattern matching

component positioning

missing-part inspection

board mounting

inspection of pharmaceuticals

produce

grains

Format size	1, 2/3, 1/2, 1/3" format
Focal length	25 mm
Maximum aperture ratio	1:1.8
Iris range	1.8-Close
Mount	C
Horizontal Angle of View - 1/4" format	8.2°
Horizontal Angle of View - 1/3" format	11.0°
Horizontal Angle of View - 1/2" format	14.6°
Horizontal Angle of View - 2/3" format	19.9°
Horizontal Angle of View - 1" format	28.2°
Minimum object distance	0.6 m
Back focal length	15.80 mm
Filter size	40.5 P=0.5 mm
Dimensions	φ42x40 mm
Weight	87 g
Remarks	Focus & Iris lock screws
