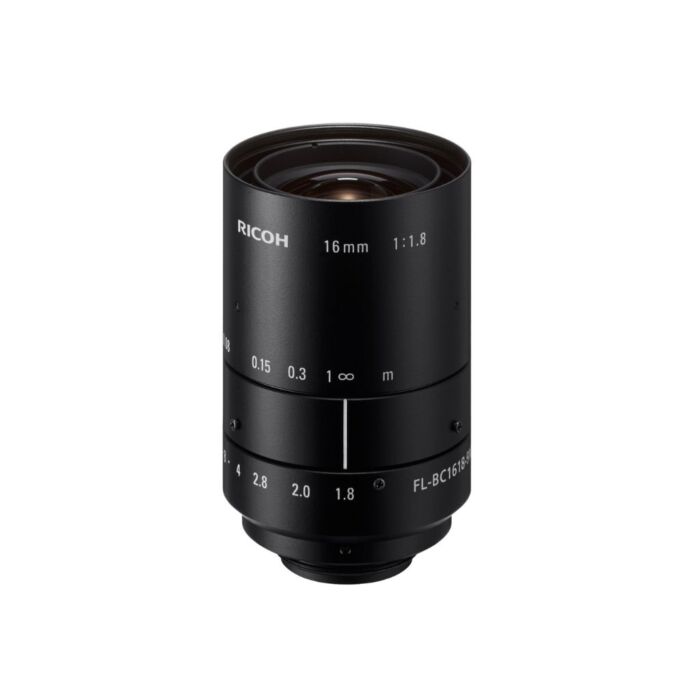

  • FL-BC1618-9M | 9 Mega-Pixel Lens | Manual Iris Lens Image #1

Ricoh FL-BC1618-9M 1" (9 MP) 16mm Manual Iris Lens

Quick Overview

The Ricoh FL-BC1618-9M (155621) 9 megapixel 1" lens was developed to assist users to capture high-resolution images from within millimeters of the lens.
$588.00

Availability: In stock

Overview

The FL-BC1618-9M incorporates a 9MP lens with manual iris and locking screws.





Features:



  • High resolution and high contrast at 9 megapixels
  • Floating mechanism in its focusing system
  • Φ42mm compact design
  • Close range at only 80mm from the lens
  •


    Applications:



  • Visual inspection of printed circuit boards and sheet materials (metal, paper, film)
  • Verifying type on printed matter
  • Inspecting the shape, color, and surface of food and pharmaceuticals for errors
  • Confirming hairline cracks and other surface defects on diameter sheet metals
  • Checking for missing pixels on LCD monitors
  • Visual and foreign substance inspections on everything from precision machined items to containers
  • In capturing precision machining products such as electronic substrates and wafers
  • Specifications
    Resolution 9 Mega-pixel*1
    Format size 1" format
    Focal length 16mm
    Maximum aperture ratio 1:1.8
    Iris range 1.8~16
    Mount C
    Horizontal
    angle of
    view
    1/3" format 17.1°
    1/2" format 22.7°
    1/1.8" format 25.4°
    2/3" format 30.8°
    1" format 43.8°
    Minimum object distance 0.08m
    Back focal length 14.1mm
    Filter size 40.5 P=0.5mm
    Dimensions φ42mmx64mm
    Weight 153g
    Remarks Focus & Iris lock screws
