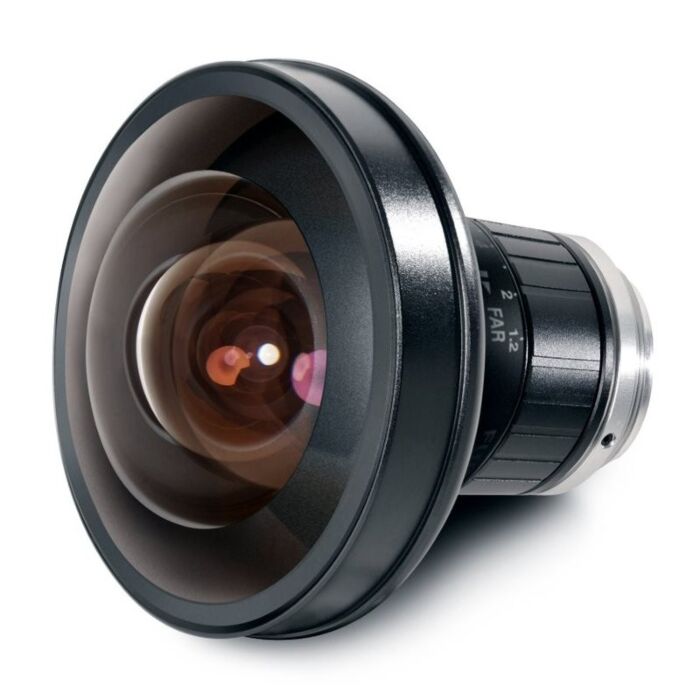

FE185C086HA-1 (FE185C086HA1): Fujinon 1 1" 2.7mm f/1 Fisheye Lens (C-Mount)
FE185C086HA-1: Fujinon is a fisheye lens designed for security/surveillance cameras with a resolution of up to 5 megapixels.
SKU
FE185C086HA-1
Fujinon's FE185C086HA-1 has a 2.7mm focal length that translates into a 185deg. viewing angle, making it an ideal solution for applications needing the use of a single lens to take in a broad view of an area.
Feature:
Applications:
| Focal Length | 2.7 |
| Iris Range | F1.8 - F16 |
| Angle of View 1" | 185°× 185° ( 8.6mm) |
| 2/3" | 185°× 140°35' |
| 1/2" | 136°18' × 102°19' |
| 1/4" Tele | 144°47' × 108°35' |
| Focus Range (From the Lens Front) (m) | ∞ - 0.2 |
| Weight | 160g |
