DF6HA-1B Image #1

DF6HA-1B (DF6HA1B): Fujinon 1/2" 1.5 MP Lens (C-Mount)

FE185C057HA-1: Fujinon Image #1

FE185C057HA-1 (FE185C057HA1): Fujinon 1 2/3" 1.8mm F/1.4 Fish-Eye Lens (C-Mount)

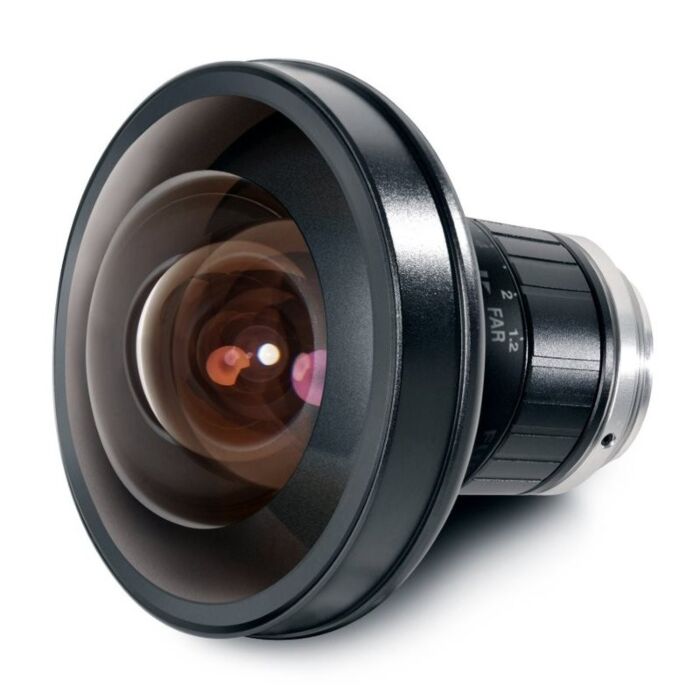

FE185C046HA-1 (FE185C046HA1): Fujinon 1 1/2" 1.4mm f/1.4 Fish-Eye Lens (C-Mount)

Fujinon's FE185C046HA-1 is a high resolution fish-eye lens built for use with security/surveillance cameras up to 5 megapixels and offers 185 degrees of viewing for effective surveillance over a wide area.
SKU
FE185C046HA-1

The FE185C046HA-1 features a metal knob connector and uses a locking mechanism.



Features:



  • For 5 MP Camera
  • Super Wide Angle (185° )
  • F-Theta System
  • Metal Mount
  •


    Applications:



  • Security
  • Surveillance
Focal Length 1.4
Iris Range F1.4 - F16
Operation Zoom -
                 Iris Fixed
                 Focus Manual
Angle of view 1/2" 185°× 185° ( 4.6mm)
1/3" Wide 185°× 144°47'
1/3" Tele 185°× 144°47'
1/4" Wide 144°47' × 108°35'
1/4" Tele 144°47' × 108°35'
Focus Range (From the Lens Front) (m) ∞ - 0.1
Weight 140g
