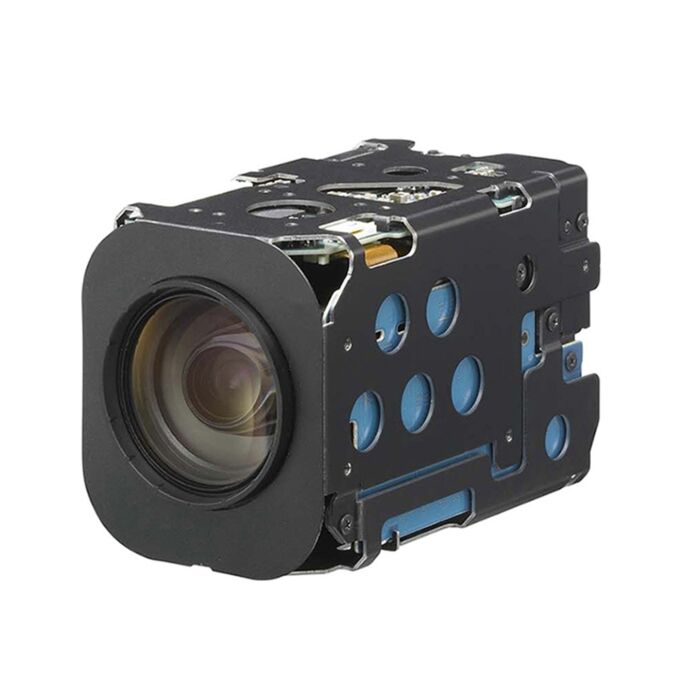

Sony FCB-EX1020P (FCBEX1020P) PAL 36x Zoom Color Block Camera
The FCB-EX1020 and the FCB-EX1020P color block cameras incorporate ¼ type ExView HAD™ CCD. What's new is they also feature true progressive scan technology with exceptional picture quality and high zoom capabilities (432x combined digital and optical zoom).
In addition, the new FCB-EX1020 and the FCB-EX1020P are the first in this exceptional camera series with IP-ready digital output. The FCB-EX1020/1020P cameras unite several new and upgraded features with its renowned FCB performance and outstanding picture quality. Ideally suited for military applications.
Replacement camera for FCB-EX1010/P and FCB-EX1000/P
NEW FEATURES & BENEFITS
True Progressive Scan (PS): Ideally suited for IP-ready monitoring applications, the FCB E Version camera series newly adopts a Progressive Scan mode to provide smooth and clear images without interlace artifact effects when viewing details in a moving image (i.e., license plate of moving vehicles, a person running). All the processing is done by the PS from the CCD readout, signal to processing to video output.
Digital Output (ITU-R BT656): By using the digital interface, the quality of the camera's video signal does not deteriorate. This can lead to cost savings due to the direct connection to codecs/systems without the need for any additional components.
Temperature Readout: The value of the internal temperature of the FCB E Version cameras can be read out via the VISCA™ protocol. When checking the internal temperature of equipment (i.e., speed dome unit), it is possible to use this data to turn a fan or heater on/off inside the equipment as needed.
Color Enhancement: Ideally suited for military and low vision applications, new color enhancement options can make reading text and pictures less challenging. Available options include monochrome, binary, inverted and enhanced color modes.
OTHER KEY FEATURES:
|
|
FCB-EX1020 | FCB-EX1020/P |
|
Image sensor |
¼ type EXview HAD™ CCD (Progressive Scan)
|
|
| Signal system |
NTSC
|
PAL
|
| Number of total pixels |
380,000 pixels
|
440,000 pixels
|
| Lens |
36x optical zoom, f=3.4 mm (wide) ~ 122.4mm (tele)
|
|
| Digital zoom |
12x (432x with optical zoom)
|
|
| Horizontal Resolution |
550 TV Lines
|
|
| Angle of view (H) |
57.8° (wide end) to 1.7° (tele end)
|
|
| Minimum Working Distance |
10 mm* (wide) ~ 1,500 mm (tele) *Default: 320 mm
|
|
| Video Output | Analog: VBS: 1.0 Vp-p (sync negative), Y/C Digital: Y/Cb/Cr 4:2:2 (ITU-R BT656 Style) |
|
| Sync system | Internal / External (V-lock) | |
| Minimum illumination | 1.4 lx (typical) (F1.6, 50 IRE) | |
| S/N ratio | More than 50 dB | |
| Camera Control Interface | VISCA (TTL signal level) Baud Rate: 96Kb/s, 19.2 Kb/s, 38.4 Kb/s Stop bit: ½ bit selectable |
|
| Electronic shutter | 1/1 to 1/10,000 s, 22 steps | |
| White balance | Auto, ATW, Indoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual |
|
| Gain | Auto / Manual/Max. Gain Limit (-3 to 28 dB, 2 dB steps) | |
| AE control | Auto, Manual, Priority mode (shutter priority & iris priority) Bright, EV compensation, Slow AE |
|
| Wide-D Dynamic Range | Auto Mode IS/PS Mode |
|
| Focusing System | Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF, Focus Compensation in ICR on |
|
| Day/Night | Auto/Manual | |
| Image Stabilization | Yes/ StableZoom up to 43x | |
| Picture Effects | E-Flip, Nega Art, Black & White, Mirror Image, Color | |
| Title Display | 20 characters/line, max. 11 lines | |
| Camera Mode Display | English (default)/ Chinese | |
| Camera Operation Switch | Yes (Zoom Tele, Zoom Wide) | |
| Storage Temperature | -40℃ ~ 60℃ | |
| Operating Temperature | -5℃ ~ 60℃ | |
| Power Requirements | 6.0 V ~ 12.0 V DC | |
| Power Consumption | 22.6 W (motors active: 4.9 W) | |
| Weight | 230 g | |
| Dimensions | 50.0 (w) x 57.5 (h) x 87.9 (d) mm | |
* Features and specifications subject to change without notice. Non-metric weights & measurements are approximate.
