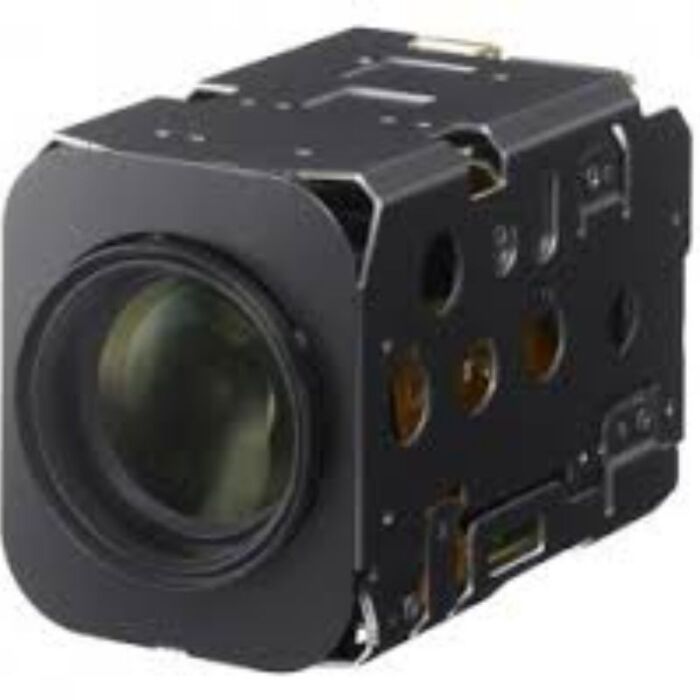

Sony FCB-EV7500 (FCBEV7500) Full HD 30x Color Block Camera

*Discontinued please contact your Aegis Sales Rep for last time buys and suitable replacements*

In response to the growing demand for high-quality, high-resolution images, Sony is adding three new color models to our camera block line-up. The FCB-EV7500 employs a 1/2.8-type Exmor™ CMOS image sensor with Full HD (1080/60p) performance and achieves excellent zooming performance with a 30x optical zoom lens.

SKU
FCB-EV7500 Full HD 30x Colour Camera Block

The FCB-EV7500 camera inherits a multitude of features from Sony’s world-renowned FCB Series including Wide-D*1, Auto ICR, Spherical Privacy Zone Masking and NEW Visibility Enhancer. These useful features are suitable for a variety of demanding applications.



Features:



  • Capture crisp, clear Full HD (1080/60p) images
  • The high-performance 1/2.8-type Exmor™ CMOS image sensor achieves superb Full HD (1920 x 1080) picture quality, even in lowlight environments. Progressive scanning assures smoother pictures with reduced blur – ideal for capturing the detail in moving images
  •
  • Fast, bright lens with rapid 30x optical zoom
  • The high-quality lens offers a bright F1.6 maximum aperture and 30x optical zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups in security and surveillance applications.
  •
  • Get a steadier picture with image stabilizer
  • The camera’s built-in image stabilizer function counters the effects of blurred, shaky images caused by low-frequency vibration. It’s useful for outdoor surveillance and traffic monitoring applications where the camera may be subject to wind or mechanical vibration such as on a bridge or mounting pole.
  •
  • StableZoom™
  • Image stabilizer and optical/digital zoom are combined to enhance picture quality while maintaining the original horizontal angle of view, ensuring no compromise in image size and reduced blurring.
  •
  • 2D/3D Noise Reduction
  • Advanced noise reduction technology filters noise from the image for clearer results, especially in low light conditions. Noise reduction can be selected from five levels to suit a wide range of operating environments.
  • See more clearly with Visibility Enhancer and De-fog
  • Picture quality is enhanced dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range. There’s also a de-fog feature that allows clearer viewing in foggy or misty scenes.
  •
  • Wide dynamic range
  • Wide-D image processing technology gives the ability to see clear detailed images in high-contrast or backlit environments.
  •
  • Clear vision round the clock with Day/Night
  • Benefit from optimized picture quality in changing light conditions – a frequent challenge in round-the-clock security operations. In high sensitivity mode, the camera can operate effectively in lighting
  • levels as low as 0.35 lx (ICR on).*5
  •
  • Auto ICR (Auto IR-cut Filter Removal)
  • In low light conditions, the camera automatically switches from day to night mode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness.
  •
  • Spherical privacy zone masking
  • Areas of view can be selectively masked for privacy. Masked areas are automatically interlocked with the camera’s pan/tilt/zoom movements.
  •
  • Choice of HD and SD output modes
  • Video signal outputs are available in a range of HD (digital and analog) and SD formats, reducing integration cost and complexity by avoiding the need for additional analog/digital converters. Video
  • output modes can be changed ‘on the fly’ during normal operation, without a hardware reboot of the camera.
  •
  • One-cable connection for simpler integration
  • A single cable carries HD video signals plus VISCA communication and power supply. Integration flexibility is further supported by both 30-pin micro coaxial (digital output) and 24-pin FFC (analog output) interfaces.
  •
  • Wide range of features for versatile operation
  • Versatile operation is ensured by a wide range of functions and adjustments, including White Balance modes; Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Colour Enhancement);
  • Motion Detection/Alarm; Picture freeze; Temperature readout; Slow AE response; Electronic shutter/slow shutter; Title display/ Camera mode display (English).
  •


    Applications:



  • Security
  • Surveillance
  • Broadcast
  • Unmanned Vehicles
  • ITS
  • and so much more...
  • Sensor Ref 0
    Sensor Type 1/2.8-type CMOS
    Auto ICR function Yes (adjustable threshold)
    ICR function Y
    Freeze Y
    Auto Slow Shutter Y
    Slow Shutter Function Y
    Wide Dynamic Range Yes (Advanced 90dB)
    Signal System 1080p/29.97, HD: 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080p/30, 720p/59.94, 1080i/50, 1080i/59.94, 1080p/25, SD (NTSC-PAL), 720p/25, 720p/29.97, 720p/30, 720p/50, 720p/60
    Picture Elements 2
    Horizontal Resolution 0
    Lens x30 Zoom
    Lens - Detail 0
    Lens - f stops 0
    Zoom Movement Speed 0
    Digital Zoom 0
    Angle of View H (WIDE) 0
    Min Working Distance (WIDE) 10
    Min Working Distance (tele) 1200
    Image Stabilizer Y
    Recomended Illumination 100
    Minimum Illumination 1
    Minimum Illumination 2 0
    Minimum Illumination 3 0
    AD 0
    SN Ratio 0
    Electronic Shutter Speed 1
    White Balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, One-push, Manual, Sodium Vapor Lamp Fix/Auto/outdoor
    Gain 0
    AE Control Full Auto, Shutter Priority, Iris Priority, Manual, Bright, Exposure Compensation, Slow AE, Back Light Compensation, Slow Shutter - Auto/Manual
    EV Compensation -10
    Flicker Compensation No
    Noise Reduction 6 steps (Adaptative 3DNR)
    Spot AE Y
    Focusing System Auto (Sensitivity: normal-low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Near Limit, Focus Compensation with IR lighting
    Picture Effects Black & White, Neg. Art, E-Flip, Mirror, Color enhancement, Visibility enhancer, Black level, gamma, Sat/Hue Adjust, Defog (ON/OFF)
    Character Generator Yes (20 characters/line, max. 11 lines)
    Grid/Cross Disaply Yes
    Privacy Zone Masking Yes (with Spherical Pan/tilt)
    Privacy Zone masking Detail (24 mask, 8 on screen, 160x90 matrix)
    Interlock with pan, tilt and zoom Yes (Spherical interlocking)
    Alarm function Yes (Motion detection with 4 zones)
    Aperture Control 16 steps
    Preset 1 custom/power on preset, 16 positions
    User Memory 16
    Serial Interface VISCA protocol (TTL/CMOS), 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps Stop bit 1/2 bit
    Visca Model ID 467
    Video Output HD: Analog Component (Y/Pb/Pr), Digital (Y/Cb/Cr 4:2:2) Dual/single LVDS SD: VBS
    Connector 30 pin LVDS, 24-pin FFC
    Metal Frame Y
    Lens Diameter 41
    Storage Temperature Humidity -20
    Operating temperature/ Humidity -5
    Power Consumption 3
    Power Voltage 6
    MTBF (excluding lens) 0
    Weight 260
    Width 50 mm
    Depth 89
    Height 60 mm
    Order Quantity 10
