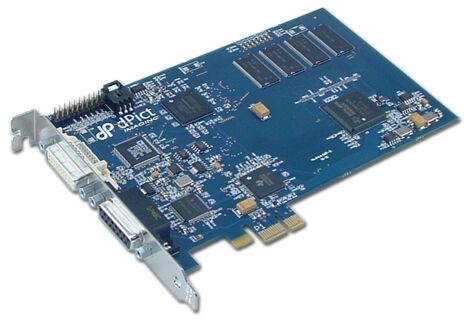

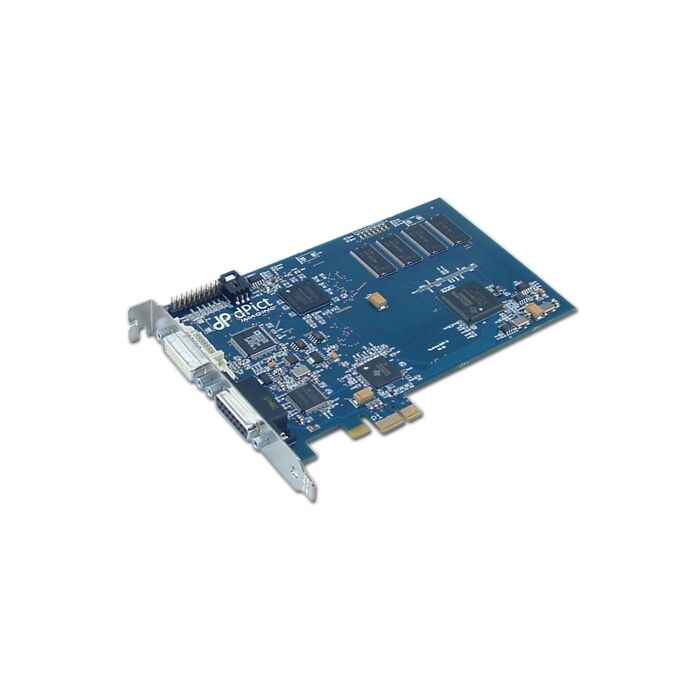

Dpict 90018 Developer Foundation SDK for Nexeon HD

Quick Overview

Nexeon HD is a full-featured video frame grabber for high-definition video display and capture. It supports video inputs from standard and HDTV resolutions as well as VGA display.

Nexeon HD has a flexible input interface complete with an HDMI compatible receiver and supports both analog and digital DVI/HDMI standards.


  • PCI Express Format
  • Bus-mastering video acquisition
  • HDTV support up to 1080p
  • DVI and HDMI input support
  • Standard definition RGB/YPrPb component, S-Video or Composite video input support
  • Simultaneous real-time transfer of video to system memory or display memory
  • TI DM642 Digital Media Processor
  • 64 MB SDRAM Frame Buffer
  • Acquisition rates up to 150 MHz
  • Video scaling to arbitrarily sized windows
  • Progressive scan video support
  • Area of interest transfers to system and onboard memory
  • 12-volt DC fused output for camera supply
  • General purpose I/O triggers
  • On-board microcontroller for robust timing and capture
  • Multiple board install support
  • Windows® 8, 7, Vista, and XP drivers
  • DirectShow and TWAIN support
  • Free dPiction Capture Application
  • Optional SDK with sample applications
  • Specifications
    Form Factor
    • PCI Express x1 connector
    Video Inputs
    • Standard or HDTV
    • RGB/YPrPb component, S-Video, and composite
    • DVI or HDMI input support
    HD Video Acquisition
    • Up to 150 MHz acquisition rates
    • Progressive scan video support
    • HDTV standard support up to 1080p
    • Supports VGA display capture up to 1280x1024 @ 75 Hz
    SD Video Acquisition
    • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
    • High-quality 10-bit digitization
    • Square-pixel and CCIR-601 resolution support
    Video Formatting
    • Bus-mastering video transfers to system or display memory simultaneously
    • Video scaling to randomly-sized windows
    • 64 MB SDRAM frame buffer
    • RGB 32/24/16/15/8, YUV 4:4:4 and YUV 4:2:2 pixel formats
    • Area of interest transfers to on-board and system memory
    • Extensive interrupt control for robust capture
    I/O Triggers and Control
    • 4 general-purpose I/O triggers
    • Triggers programmable as input or output
    • Automatic display mode and sync detection
    • Fused 12V DC output
    Physical and Environmental
    • 5.00"(length) x 4.20" (height)
    • Operating temperature: 0° C to 70° C
    • Relative humidity: 5% up to 95% non-condensing
    • DB-15 Female I/O connector
    • DVI-I Female display connector
