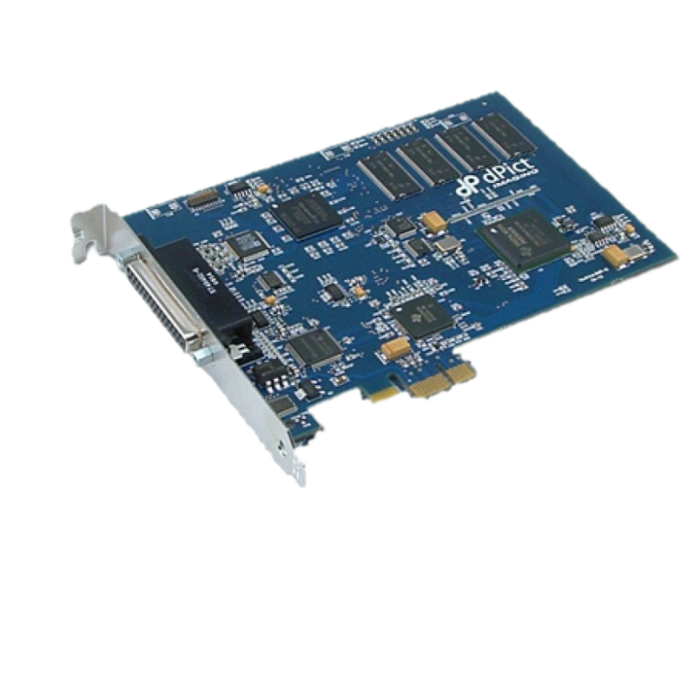

dPict 10012-001 Aexeon 32MB PCIe Frame Grabber
32MB PCIe video acquisition frame grabber
SKU
10012-001 Aexeon 32 MB-PCIe
Aexeon is a low-cost, full-featured video frame grabber board for analog camera solutions. Aexeon accepts multiple composite, S-Video, or component video inputs in both NTSC and PAL formats and digitizes in both square pixel and CCIR-601 resolutions. With on-board processing, complete camera control, and video output, Aexeon is the perfect product for analog camera OEM solutions.
Features:
- PCI or PCI Express formats
- Bus-mastering video acquisition
- Simultaneous real-time transfer of video to system memory, overlay, or display memory
- TI DM642 Digital Media Processor
- 32 MB SDRAM Frame Buffer
- High-quality 10-bit input digitization
- Video scaling to arbitrarily sized windows
- Up to 3 RGB or YPbPr, 4 S-Video, and 9 composite multiplexed video inputs
- RGB, YPbPr, S-Video, and composite video output
- CCIR and square pixel capture resolution
- NTSC and PAL video formats
- General purpose I/O triggers
- Programmable LUT
- Packed or planar transfers
- Area of interest transfers to/from system and on-board memory
- On-board micro-controller for robust timing and capture control
- RS-232 serial input and output
- Camera integration support
- 12-volt DC switched output for camera supply
- Real-time image processing
- Windows® XP, Vista, and 7 drivers
- Windows®-based video capture application
- DirectShow and TWAIN support
- Optional SDK with sample applications
| Form Factor | • PCI or PCI Express form factor • Scatter gather DMA support • PCI 2.2 compliant, 5V and 3, 3V universal slot • PCI Express x1 connector |
| Video Inputs | • Up to 9 composite or monochrome inputs • Up to 4 S-Video inputs • Up to 3 RGB or YPbPr component input |
| Video Digitization | • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support • High-quality 10-bit digitization • Square pixel and ITU-601 resolution support • Software programmable control of gain, offset, hue, saturation, and sharpness • EEPROM for storing confi guration and calibration settings |
| Video Acquisition | • Smooth interpolated scaling to randomly-sized windows • Bus-mastering video transfers to system memory, overlay, or display memory simultaneously. • Hardware overlay of graphics over video • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats • Area of interest transfers to on-board and system memory • 32 MB SDRAM frame buffer • Extensive interrupt control for robust capture • Real-time image fl ip, mirror, or rotate |
| Video Output | • Composite, S-Video, and component video output • Output video can be from video overlay, system memory, or display memory |
| I/O Control | • 8 general purpose I/O triggers • Triggers programmable as input or output |
| Camera Control | • On-board microcontroller for reliable capture and control • RS-232 serial interface • Camera exposure control • 12-volt fused DC output for camera power supply |
| Physical & Environmental | • 5.00"(length) x 4.20" (height) • Operating temperature: 0° C to 55° C • Relative humidity: 5% up to 95% non-condensing • FCC and CE approved |
| Available Software Developers Kit | • Compatible with dVeloper SDK • Windows® 2000 and XP DLLs • DirectDraw and DirectShow support • TWAIN support • Extensive documentation and sample code • dPiction Windows-based capture application • Sample applications with source code |
