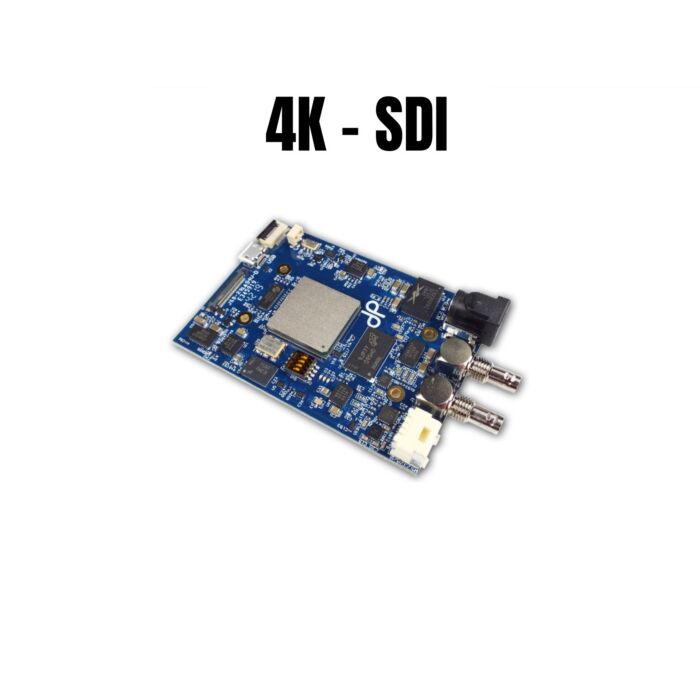

DP-800S 4K Sony Block Camera Interface Board: dPict Imaging

Quick Overview

The DP-800S is an interface board designed to convert video data from Sony 4K block cameras to SDI. It supports all video resolutions of Sony 4K block cameras and provides camera power, USB and VISCA support for complete camera integration.




Overview

Serial Digital Interface (SDI)

The DP-800S converts HDMI camera data from Sony 4K series block cameras to SDI. It supports a level A or level B 6G-SDI output over a single BNC.

Flexible FPGA-Based Design

The DP-800S is designed with a powerful FPGA with multiple high-speed, low-latency transceivers with integrated advanced signal conditioning and clock data recovery. Each transceiver supports maximum frequencies up to 12.5G that can be used for a variety of high-speed video data interfaces.

Full Integration

The DP-800S solution offers a complete board and camera control for custom OEM integration. A 30-pin micro-coax cable connects to the Sony block camera for video data transfer and camera communication. The DP-800S provides power to the Sony block and also supports the transfer of Sony VISCA commands through an optional USB cable.





Features:

  • Interface board for Sony 4K block cameras
  • Supports FCB-ES8230, FCB-ER8300, FCB-ER8530, and FCB-ER8550
  • Converts camera HDMI to SDI
  • Supports all camera resolutions
  • Supports camera genlock (FCB-ER8550 only)
  • Automatic camera resolution detection
  • On-board frame buffer for robust transmission
  • Power, USB and VISCA interface to camera
  • Flexible FPGA-based design
  • Optional Camera Integration Kit
  •


    Applications:



  • Sony 4K Block Cameras
  • Specifications

    SDI Resolution Support

    QFHD

    • 3840 × 2160 29.97p
    • 3840 × 2160 25p
    • 3840 × 2160 23.98p

    FHD

    • 1920 × 1080 59.94p
    • 1920 × 1080 50p
    • 1920 × 1080 59.94i
    • 1920 × 1080 50i
    • 1280 × 720 59.94p
    • 1280 × 720 50p
    • 1280 × 720 23.98p

    Physical and Environmental

    • 3.00"(length) x 2.00" (height)
    • Operating temperature: 0° C to 70° C
    • Relative humidity: 5% up to 95% non-condensing
    • KEL 30-pin IDC connector (Sony interface)
    • SMB Connector (SDI Output)
    • Micro USB
    • 2.2mm Barrel (Power)
