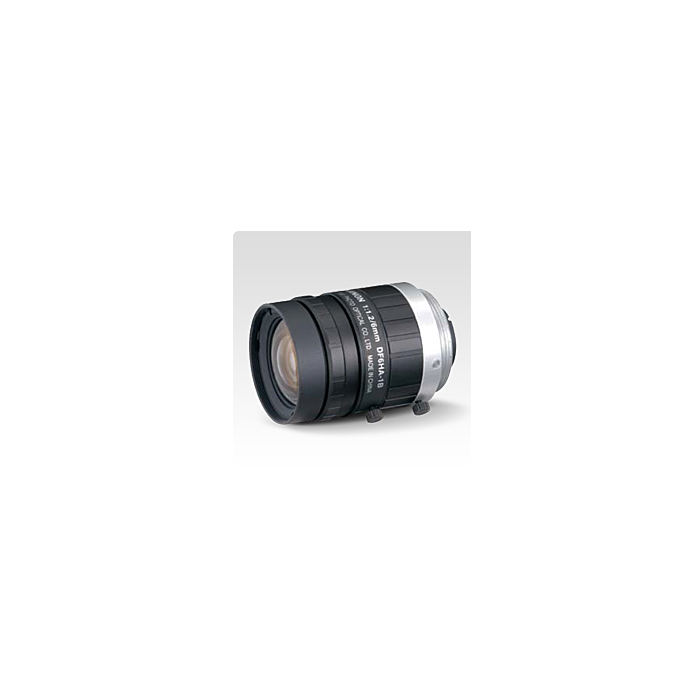

DF6HA-1B (DF6HA1B): Fujinon 1/2" 1.5 MP Lens (C-Mount)

DF6HA-1B. Designed to achieve high resolution, supporting up to 1.5 megapixel cameras. Designed for low distortion, enabling faithful image input.
SKU
DF6HA-1B

The DF6HA-1B is designed for low distortion, high resolution images.



Features:



  • Fixed Focus
  • Manual Iris
  • Metal  Mount (C-Mount)
  •


    Applications:



  • Industrial Inspection
  • Machine Vision
  • Focal Length 6
    Iris Range F1.2-F16
    Angular Field of View 56°09′ × 43°36′
    Back Focal Distance (In Air) 11.44mm
    Exit Pupil Position (From Image Plane) -46mm
    Object Dimensions at M.O.D. 122 × 92 mm
    Focusing Range (From Front of the Lens) ∞ - 0.1 m
    Filter Thread M27 × 0.5 mm
    Weight  55g
