  • DF360SR4A Image #1

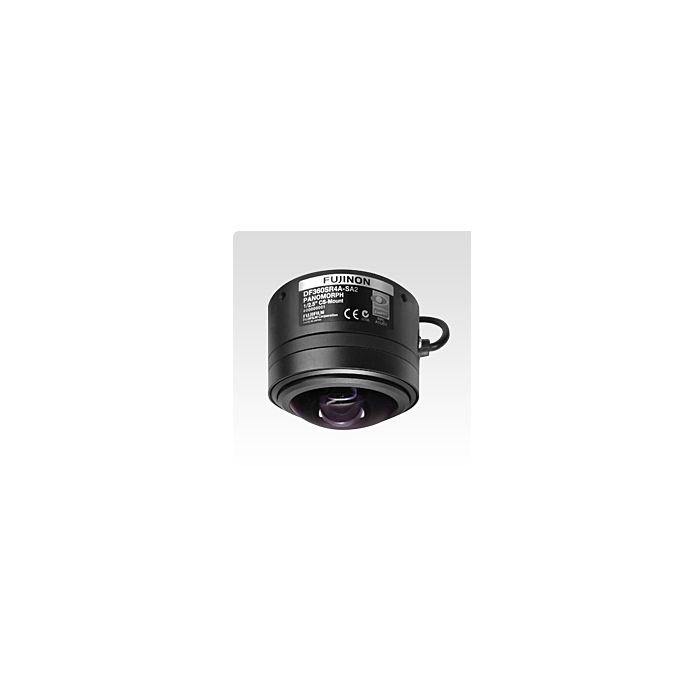

DF360SR4A: Fujinon 1 2.5" Panomorph 5 Megapixel Lens (CS-Mount)

Quick Overview

DF360SR4A is a CS-Mount 1.3mm 5Mp Panomorph 360° Wide-Angle Lens.
Overview

The DF360SR4A offers a flexible usage of 360° immersive view. By using ImmerVision Enables DVRs, NVRs, and VMS the consumer enables the ability to navigate without any distortion within the image like a digital PTZ.



Featrures:



  • More pixels coverage on camera sensors compared to Fish-Eye lenses
  • Object size magnification in area of interest (periphery) compared to Fish-Eye lenses
  •


    Applications:



  • CCTV
  • Security
  • Surveillance
  • Specifications
    Image Format 1/2.5"
    Focal Length 1.3mm
    Iris Range F2.0 close
    Operation Range Focus: Manual
    Iris: Auto (DC type)
    Angle of View (HxV) 182 x 182°
    Ratio Anamorphic: 1.3 (4:3)
    Focusing Range Infinity to 0.33'/0.10 m (from front of the lens)
    Mount CS
    Dimensions 2.71 x 2.24" (69.00 x 56.90 mm)
    Weight 9.35 oz (265.00 g)
