CBC-Computar V2528-MPY (V2528MPY) 25mm Fixed Lens (C-Mount)

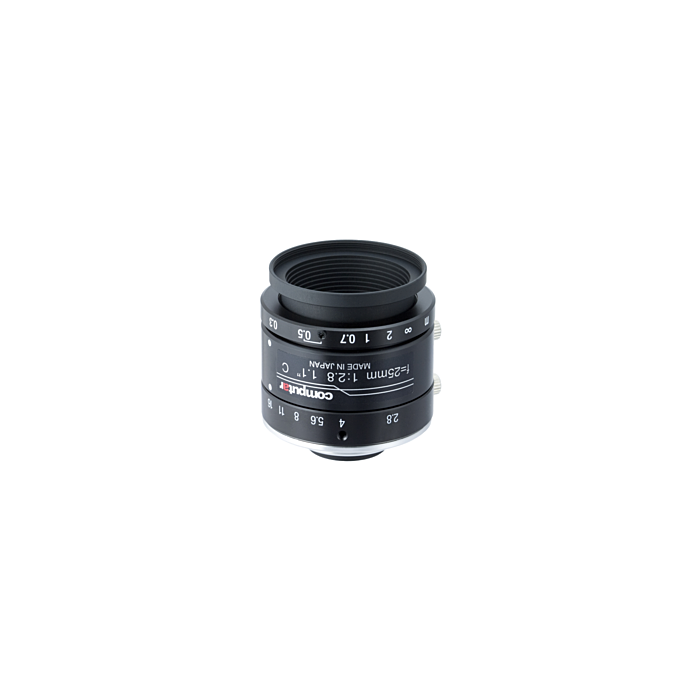

Computar V2528-MPY 1.1" 25mm F2.8 Manual Iris Ultra Low Distortion, 12 MP
SKU
V2528-MPY
The MPY Series supports 1.1” sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high performance optics with a variety of common focal lengths for maximum application flexibility. The Computar V2528-MPY is equipped with a 25mm fixed lens, a maximum aperture ratio of 1:2.8, manual focus and iris control, and weighs 78.6 grams.
Features:
- 25mm Fixed Lens
- 12 Megapixel
- C Mount
- Smallest 1.1” format lens for > 10MP Lens in the industry
- F 2.8
- 3.45µm pixel size
- Image circle Ø17
- Also Available in 8, 12, 16, 35 and 50mm focal lengths
Applications:
- Machine Vision
- ITS Applications
| Focal Length | 25mm |
| Max. Apeture Ratio | 1:2.8 |
| Max. Image Format | 14.2mm x 10.4mm(φ 17.6mm) |
| Operation Range | Iris: F2.8 - F16.0 Focus: 0.3m - Inf. |
| Control | Iris: Manual Focus: Manual |
| Object Dimension at M.O.D. | 158.7 (H) mm x 116.2 (V) mm 1.1" |
| Angle of View | D: 38.7° D: 35.4° D: 24.8° 1.1" H: 31.7° 1" H: 28.7° 2/3" H: 20.0° V: 23.5° V: 21.7° V: 15.0° |
| Operating Temperature | -10°C - +50°C |
| Distortion | 1.1" 0.3%(y=8.8) 1" 0.2%(y=8.0) 2/3" 0.1%(y=5.5) |
| Back Focal Length | 11.3mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M34.0 P=0.5mm |
| Dimensions | φ 39.5mm x 34mm |
| Weight | 78 g |
MPY Series
