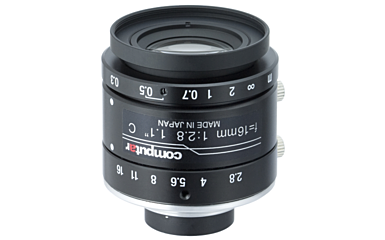

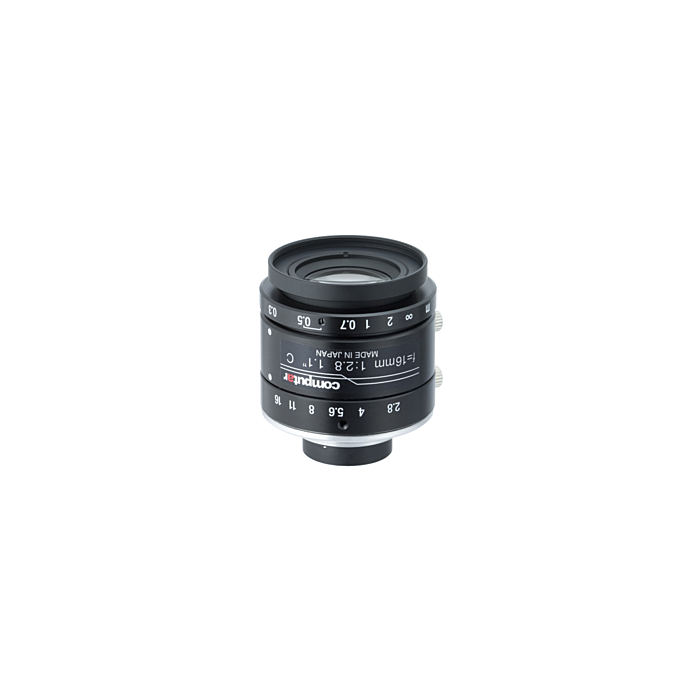

  • Computar V1628-MPY Image # 1

CBC-Computar V1628-MPY 16mm Fixed Lens (C-Mount)

Quick Overview

This Computar 1.1" 16mm f/2.8 12MP Ultra Low Distortion Lens is designed for cameras for use in a variety of applications
$441.30

Availability: In stock

Overview

The MPY Series supports 1.1” sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high performance optics with a variety of common focal lengths for maximum application flexibility. The Computar V1628-MPY weighs in at 91.4 grams and a 16mm focal length.

Features:

  • 16mm Fixed Lens
  • 12 Megapixel
  • C Mount
  • Smallest 1.1” format lens for > 10MP Lens in the industry
  • F 2.8
  • 3.45µm pixel size
  • Image circle Ø17
  • Also Available in 8, 12, 25, 35 and 50mm focal lengths

  • Applications:

  • Machine Vision
  • ITS Applications
  • Specifications
    Focal Length 16mm
    Max. Apeture Ratio 1:2.8
    Max. Image Format 14.2mm x 10.4mm(φ 17.6mm)
    Operation Range Iris: F2.8 - F16.0
    Focus: 0.3m - Inf.
    Control Iris: Manual
    Focus: Manual
    Object Dimension at M.O.D. 264.6 (H) mm x 193.8 (V) mm 1.1"
    Angle of View          D: 57.9°         D: 53.4°           D: 38.2°
    1.1"  H: 48.2°   1"  H: 43.9°  2/3"  H: 30.9°
            V: 36.2°          V: 33.6°           V: 23.4°
    Operating Temperature -10°C - +50°C
    Distortion 1.1" -0.5%(y=8.8) 1" -0.6%(y=8.0)  2/3" -0.6%(y=5.5)
    Back Focal Length 9.4mm
    Flange Back Length  17.526mm
    Mount C-Mount
    Filter Size M34.0 P=0.5mm
    Dimensions φ 39.5mm x 35.2mm
    Weight 91 g



    MPY-Series

    Computar V1628-MPY
