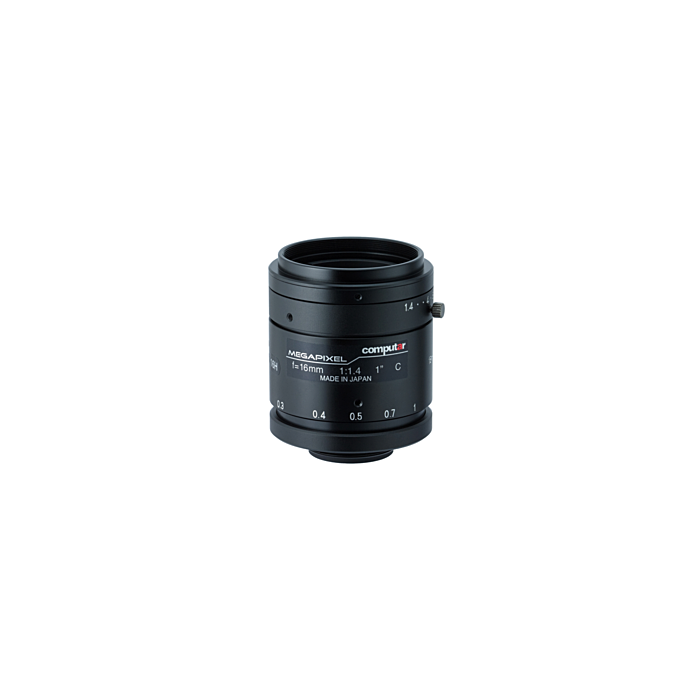

CBC-Computar V1614-MP (V1614MP) 16mm Fixed Lens (C-Mount)
COMPUTAR V1614-MP 1" 16MM F1.4 Manual Iris, Ultra Low Distortion, 2 MP
SKU
Computar V1614-MP
The Computar V1614-MP is a 1" 16mm F1.4 Manual Iris C-Mount, Ultra Low Distortion, 2 Megapixel lens. The MP Series of lenses have aperture and focus adjustment rings and are equipped with fixing screws.
Features:
Applications:
| Focal Length | 16mm |
| Max. Apeture Ratio | 1:1.4 |
| Max. Image Format | 12.8mm x 9.6mm (φ 16mm) |
| Operation Range | Iris: F1.4 - F16.0 Focus: 0.3m - Inf. |
| Control | Iris: Manual Focus: Manual |
| Object Dimension at M.O.D. | 1" Type: 186.7 x 252.1 mm 2/3" Type: 127.1 x 170.7mm |
| Angle of View | D: 54.36° D: 38.3° 1" H: 44.25° 2/3" H: 30.84° V: 33.56° V: 23.23° |
| Operating Temperature | -10°C - +45°C |
| Effective Lens Aperture | Front: φ20.1mm Rear: φ18.0mm |
| Distortion | 1 type: -4%(y=8.0) 2/3 type: -2.3%(y=5.5) |
| Back Focal Length | 12.14mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M35.5 P=0.5mm |
| Dimensions | φ 43mm x 48.5mm |
| Weight | TBA |
