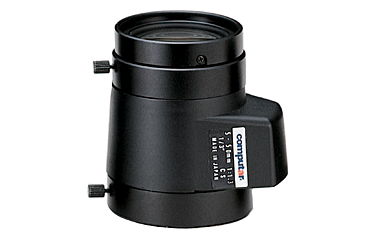

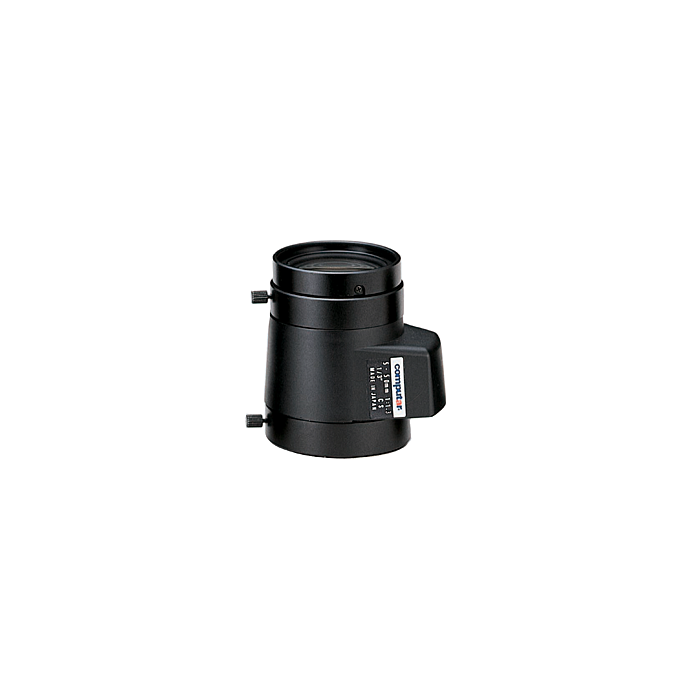

TG10Z0513FCS: CBC-Computar 1/3" 5-50mm f1.3 A/I (CS-Mount)
1/3" 5-50mm f1.3 Varifocal, DC Auto Iris (CS Mount)
SKU
Computar TG10Z0513FCS
Computar varifocal DC auto iris lenses offer maximum flexibility in camera installations requiring a wide range of focal lengths. Focal length adjustments can be made with a turn of the dial, virtually eliminating the cost and inventory problems associated with improper monofocal lens selection. All lenses are CS-Mount, comprised of all glass optics, come with locking setscrews and a durable metal barrel and mount, and are covered by a three year warranty.
| Focal Length | 5 - 50mm |
| Max. Aperture Ratio | 1:1.3 |
| Max. Image Format | 4.8 x 3.6 mm (ø6 mm) |
| Operation Range | Iris: F1.3 to F360C Focus: 0.8m to infinity Zoom: 5mm - 50mm |
| Control | Iris: DC Auto Iris Focus/Zoom: Manual |
| Object Dimension at M.O.D. | 5mm: 77.7cm x 57cm 50mm: 7.8cm x 6.0cm |
| Angle Of View | 1/3 type - 64.0 - 6.9° (D), 51.8 - 5.6° (H), 39.2 - 4.3° (V) 1/4 type - 48.8 - 5.3° (D), 39.2 - 4.3° (H), 29.5 - 3.2° (V) |
| Coil | Drive: 190 Ohms Control: 1000 Ohms |
| Operating Temperature | -20 to 50°C |
| Effective Lens Aperture | Front: ø29.5 mm Rear: ø8.7 mm |
| Back Focal Length | Tele: 10.6 mm Wide: 10.5 mm |
| Flange Back Length | 12.5 mm |
| Mount | CS-Mount |
| Filter Size | M37.5 P=0.5mm |
| Dimensions (W x H x D) | ø41.7mm x 57.5mm x 57.7mm |
| Weight | 140g |
