Computar TEC-V7X Image # 1

TEC-V7X (TECV7X):CBC-Computar 5 Megapixel 7X Macro Zoom Telecentric Lens (C-Mount)

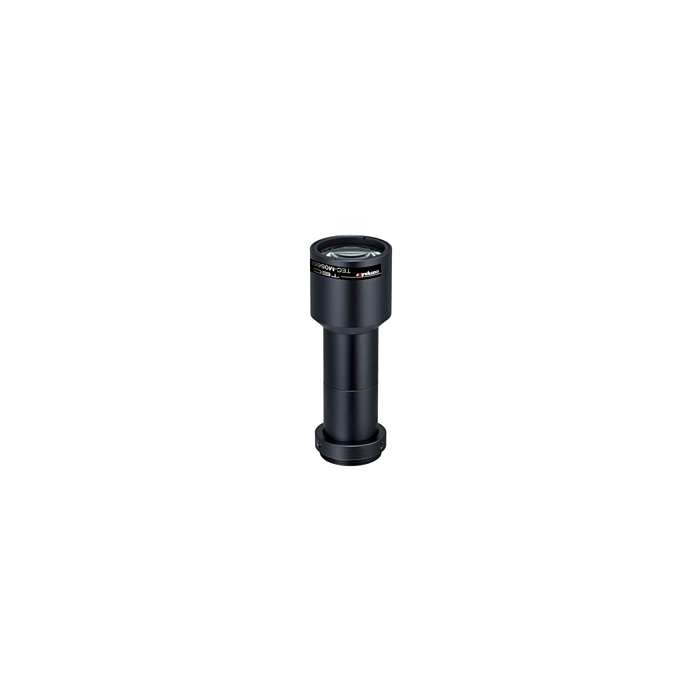

Computar TEC-M0565MPC Image # 1

TEC-M0565MPC (TECM0565MPC): CBC-Computar 2MP, 2/3" 65.5mm, Telecentric Lens, 0.5x magnification lens w/ coaxial (C-Mount)

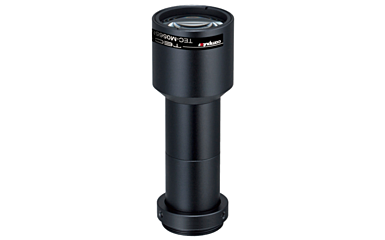

TEC-M0565MP (TECM0565MP): CBC-Computar 2MP, 2/3" 65.5mm, Telecentric Lens, 0.5x magnification (C-Mount)

2/3 type Cameras, 2 Megapixel Telecentric Lens, Magnification 0.5X, WD65mm
SKU
Computar TEC-M0565MP

Features:

  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 65mm working distance
  • 0.5x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  • Magnification 0.5X
    Working Distance 65.5mm
    Effective F Number 9.0
    Max. Image Format φ11mm
    Control Iris: -
    Focus: -
    Field of View 17.6mm(H) x 13.2mm(V) 2/3"
    Resolving Power *1 12.0µm
    Depth of Field *2 2.87mm
    NA 0.028
    TV Distortion 2/3 type: -0.012%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C-Mount
    Filter Size -
    Dimensions φ32mm x 88.3mm
    Weight 77g
    Operating Temperature -10℃ - +50℃
