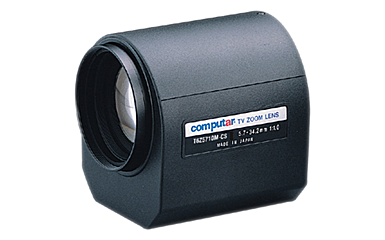

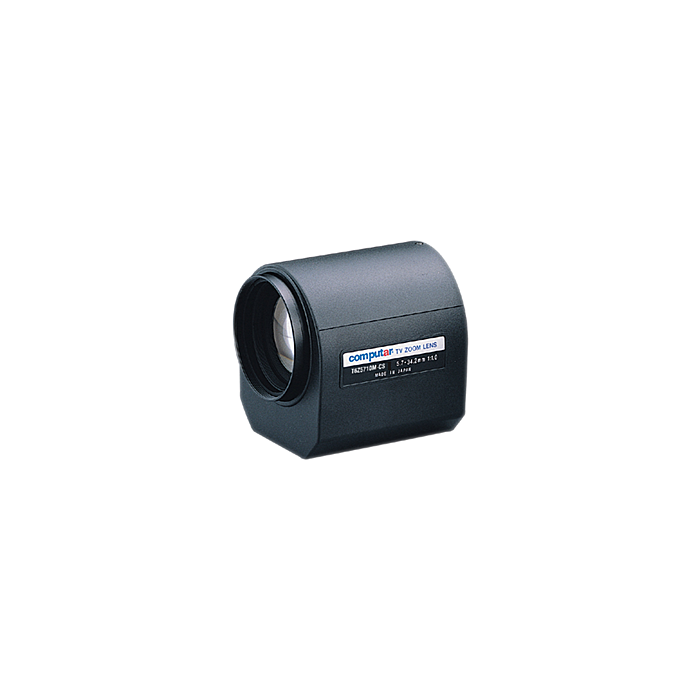

T6Z5710M: CBC-Computar 1/3" 5.7-34.2mm f1.0 6X Motorized Zoom, 3 motors (CS Mount)
1/3 type, Cameras, Motorized Zoom, 6X, 5.7mm - 34.2mm, F1.0.
SKU
Computar T6Z5710M
Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.
| Focal Length | 5.7mm - 34.2mm |
| Max. Image Format | 1:1.0 |
| Max. Image Format | 4.8mm x 3.6mm (6mm) |
| Operation Range | Iris: F1.0 - F16C Focus: 1.2m - Inf. Zoom: 5.7mm - 34.2mm |
| Control | Iris: Motorized Focus: Motorized Zoom: Motorized |
| Object Dimension at M.O.D. | 5.7mm: 101.6cm x 75.2cm 34.2mm: 17cm x 13cm |
| Angle of View | 1/3 type: 56.5° - 10.0° (D) x 45.9° - 8.1° (H) x 34.8° - 6.2° (V) 1/4 type: 43.2° - 7.8° (D) x 34.8° - 6.2° (H) x 26.2° - 4.8° (V) |
| Supply Voltage | Auto Iris: DC8V Focus: DC8V Zoom: DC8V |
| Current | Auto Iris: 25mA or less Focus: 20mA or less Zoom: 20mA or less |
| Response Time | Auto Iris: Approx. 2 sec. Focus: Approx. 3 sec. Zoom: Approx. 3.5 sec. |
| Preset Potentiometer | - |
| Operating Temperature | -10°C - +50°C |
| Effective Lens Aperture | Front: φ41.0mm Rear: φ10.2mm |
| Back Focal Length | 8.5mm |
| Flange Back Length | 12.5mm |
| Mount | CS-Mount |
| Filter Size | M49 P=0.75mm |
| Tripod Screw | 1/4 - 20UNC |
| Dimensions | (W) 68.5mm x (H) 76.3mm x (D) 82.5mm |
| Weight | 430 g |
