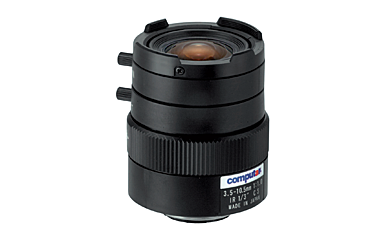

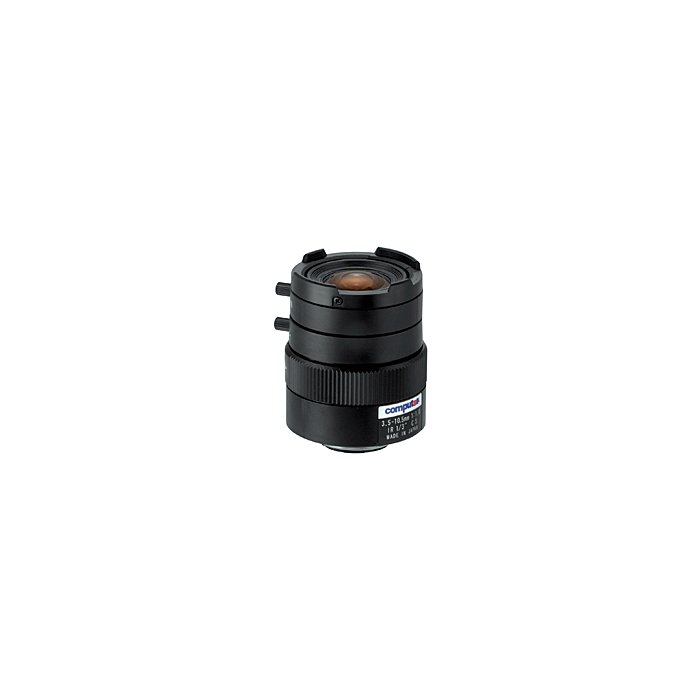

T3Z3510CS-IR (T3Z3510CSIR): CBC-Computar 1/3" 3.5-10.5mm f1.0 w/iris & focus, Day/Night IR (CS-Mount)
1/3" 3.5-10.5mm f1.0 Varifocal, Manual Iris (CS Mount) Day/Night IR
SKU
Computar T3Z3510CS-IR
Computar Varifocal IR (infrared) manual iris lenses are designed for use with Day/Night cameras. They eliminate focus shift in night mode, especially in the presence of IR lighting. All lenses are CS-Mount, comprised of all glass optics, come with locking set screws and a durable metal barrel and mount, and are covered by a three year warranty.
| Focal Length | 3.5 - 10.5mm |
| Max. Aperture Ratio | 1:1.0 |
| Max. Image Format | 4.8 x 3.6 mm (ø6 mm) |
| Operation Range | Iris: F1.0 to F16C Focus: 0.3m to infinity Zoom: 3.5mm - 10.5mm |
| Control | Iris: Manual Focus/Zoom: Manual |
| Object Dimension at M.O.D. | 3.5mm: 52cm x 34.1cm 10.5mm: 14.5cm x 10.8cm |
| Angle Of View | 1/3 type - 108.2 - 34.2°(D), 81.8 - 27.2° (H), 59.2 - 20.4° (V) |
| Operating Temperature | -20 to 50°C |
| Effective Lens Aperture | Front: ø18.6 mm Rear: ø10.2 mm |
| Back Focal Length | Tele: 16.3 mm Wide: 8.0 mm |
| Flange Back Length | 12.5 mm |
| Mount | CS-Mount |
| Filter Size | - |
| Dimensions (W x H x D) | ø41.6mm x 48.8mm |
| Weight | 63g |
