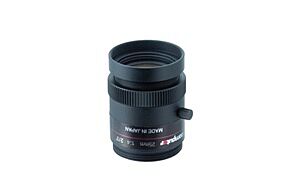

Computar M3556-MPW2-R (M3556MPW2R) 2/3" 35.0mm F5.6 Fixed Iris Lens

Computar's M3556-MPW2-R (M3556MPW2R) 2/3" 35.0mm F5.6 Fixed Iris with a locking mechanism, 5 mp, Ultra Low Distortion, ruggedized lens.
SKU
Computar M3556-MPW2-R 2/3" 35.0mm F5.6 Fixed Iris Lens

The M3556-MPW2-R is built for demanding environments, maintaining optical integrity with vibrations, shocks, and temperature changes. Computar has designed the MPW2-R Ruggedized Lens Series, a ruggedized version of its popular 5 MP, 2/3" MPW2 Series of machine vision lenses.



Features:



  • 2/3” Format
  • 5 Megapixel
  • 35mm Fixed
  • Full HD Format
  • Minimizes Image Aberrations from Shock & Vibration
  • Fixed Iris
  • F2.0 / F4.0 / F5.6 / F8.0 / F11.0 options
  • Ultra Compact Design
  •


    Applications:



  • Machine Vision
  • Industrial Imaging
  • Harsh Environments
  • Model No.

    M3556-MPW2-R

    Effective

    Front

    φ18.0mm

    Focal Length

    35mm

    Lens Aperture

    Rear

    φ12.0mm

    Max. Aperture Ratio

    1:2.0

    Distortion

    2/3 type

    0.011%(y=5.5)

    Max. Image Format

    8.8mm x 6.6mm(φ11mm)

    1/1.8 type

    0.010%(y=4.32)

    Operation Range

    Iris

    F2.0/F4.0/F5.6/F8.0/F11.0

    1/2 type

    0.009%(y=4.0)

    Focus

    0.2m ‐ Inf.

    Back Focal Length

    18.0mm

    Control

    Iris

    Fix

    Flange Back Length

    17.526mm

    Focus

    Manual

    Mount

    C-Mount



    Object Dimension at M.O.D.

    2/3 Type

    3.48cm x 4.63cm

    Filter Size

    M25.5 P=0.5mm

    1/1.8 Type

    2.74cm x 3.63cm

    Dimensions

    φ28mm x 35.17mm

    1/2 Type

    2.53cm x 3.37cm

    Weight

    45g

    Angle of View

    D

    2/3 type

    17.8°

    1/1.8 type

    14.0°

    1/2 type

    13.0°

    H

    14.3°

    11.2°

    10.4°

    V

    10.7°

    8.5°

    7.8°

    Operating Temperature

    -10℃ ‐ +50℃
