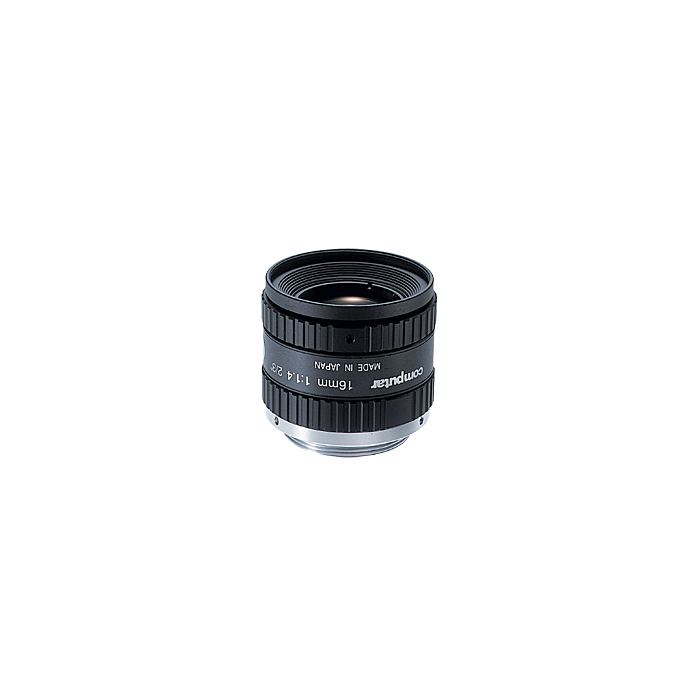

CBC-Computar M1614-MP2 (M3514MP2) 2/3" 16mm f1.4 w/locking Iris & Focus, Megapixel Lens (C-Mount)

2/3 type, Megapixel Camera Lens, f=16mm, F1.4
SKU
M1614-MP2

Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.

Features:

  • Captures full resolution of megapixel cameras
  • Low distortion
  • Assured excellent light intensity even in peripheral areas
  • High contrast and sharp picture in all areas of the screen
  • Compact design
  • Locking set screws for focus and iris
Focal Length 16mm
Max. Aperture Ratio 1 : 1.4
Max. Image Format 8.8mm x 6.6mm
Operation Range Iris: F1.4 - F16C
Focus: 0.3m - Inf.
Control Iris: Manual
Focus: Manual
Object Dimension at M.O.D. 2/3 type: 17.2cm x 12.9cm
1/2 type: 12.5cm x 9.3cm
Angle of View 2/3 type : 38.0° (D) / 30.8° (H) / 23.4° (V)
1/2 type : 28.2° (D) / 22.7° (H) / 17.1° (V)
Operating Temperature -10°C - +50°C
Effective lens Aperture Front: 18.5mm
Rear: 13.2mm
Distortion 2/3 type: -0.1%(y=5.5)
1/2 type: -0.3%(y=4.0)
Back Focal Length 13.1mm
Flange Back Length 17.526mm
Mount C-Mount
Filter Size M30.5 P=0.5mm
Dimensions 33.5mm x 28.2mm
Weight 60g
