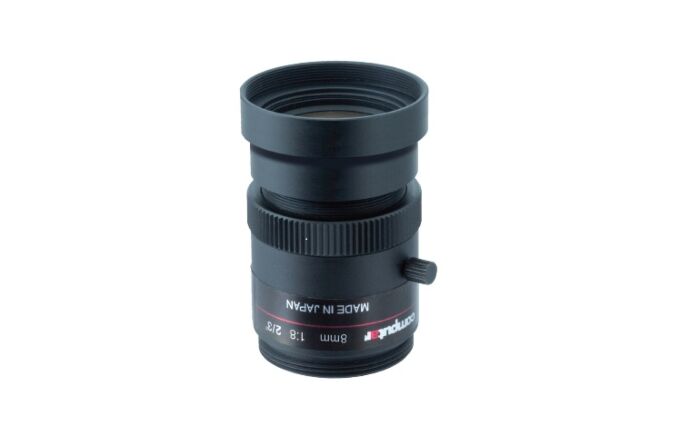

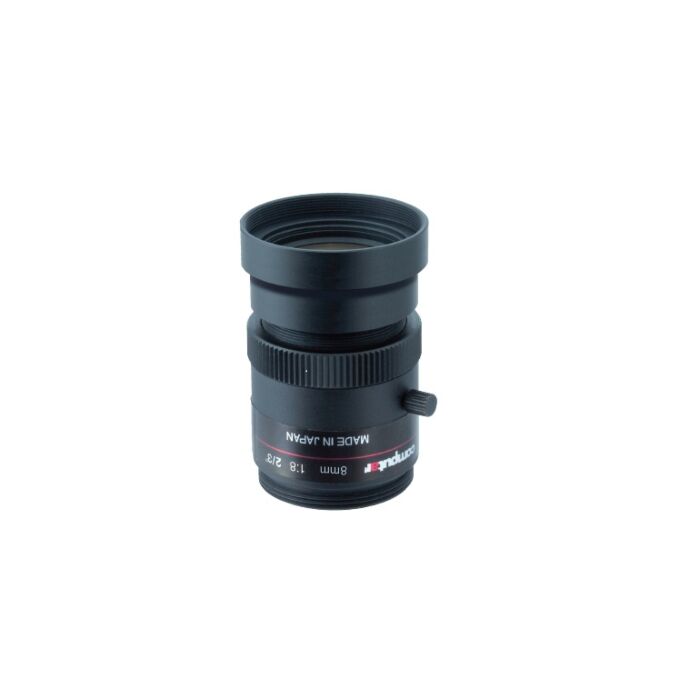

Computar M0856-MPW2-R (M0856MPW2R) 2/3" 8.0mm F5.6 Fixed Iris Lens

Computar's M0856-MPW2-R is a 2/3" 8.0mm F5.6 Fixed Iris C-Mount with Locking Mechanism, 5 MP, Ultra Low Distortion, Ruggedized Lens.
SKU
Computar M0856-MPW2-R 2/3" 8.0mm F5.6 Fixed Iris Lens

The M0856-MPW2-R is part of Computar's MPW2-R Ruggedized Lens Series, a ruggedized version of its popular 5 MP, 2/3" MPW2 Series of machine vision lenses.



Features:



  • 2/3” Format
  • 5 Megapixel
  • 8mm Fixed
  • Full HD Format
  • Minimizes Image Aberrations from Shock & Vibration
  • Fixed Iris
  • F2.4 / F4.0 / F5.6 / F8.0 / F11.0 options
  • Ultra Compact Design
  •


    Applications:



  • Machine Vision Applications
  • PRM(Passport Reader and Multi-reader
  • Rugged Environments
  • Model No.

    M0824-MPW2-R series

    Effective

    Front

    φ21.0mm

    Focal Length

    8mm

    Lens Aperture

    Rear

    φ12.0mm

    Max. Aperture Ratio

    1:2.4

    Distortion

    2/3 type

    -1.87%(y=5.5)

    Max. Image Format

    8.8mm x 6.6mm(φ11mm)

    1/1.8 type

    -1.55%(y=4.32)

    Operation Range

    Iris

    F2.4/F4.0/F5.6/F8.0/F11.0

    1/2 type

    -1.427%(y=4.0)

    Focus

    0.05m ‐ Inf.

    Back Focal Length

    13.7mm

    Control

    Iris

    Fix

    Flange Back Length

    17.526mm

    Focus

    Manual

    Mount

    C-Mount



    Object Dimension at M.O.D.

    2/3 Type

    5.4cm x 7.4cm

    Filter Size

    M30.5 P=0.5mm

    1/1.8 Type

    4.3cm x 5.7cm

    Dimensions

    φ32mm x 45.46mm

    1/2 Type

    3.9cm x 5.3cm

    Weight

    62g

    Angle of View

    D

    2/3 Type

    69.32°

    1/1.8 Type

    56.9°

    1/2 Type

    53.23°

    H

    57.80°

    46.72°

    43.74°

    V

    44.36°

    35.75°

    33.23°

    Operating Temperature

    -10℃ ‐ +50℃
