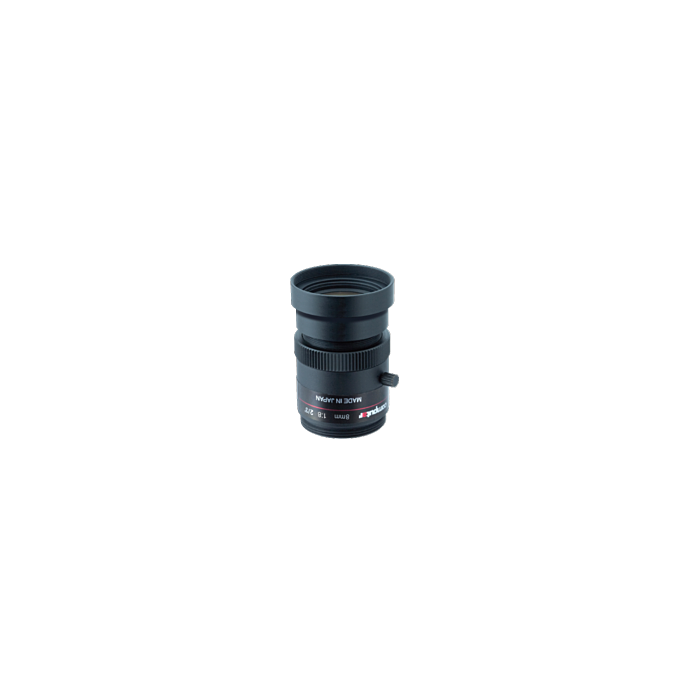

Computar M0840-MPW2-R (M0840MPW2R) 2/3" 8.0mm F4.0 Fixed Lens
Computar's M0840-MPW2-R is a 2/3", 8.0mm, F4.0, Fixed Iris, C-Mount Lens with a locking mechanism, 5 MP, Ultra Low Distortion lens built for rugged environments.
SKU
Computar M0840-MPW2-R (M0840MPW2R) 2/3" 8.0MM F4.0 Fixed Lens
Computar M0840-MPW2-R
Features
Applications:
|
Model No. |
M0840-MPW2-R series |
Effective |
Front |
φ21.0mm |
|||
|
Focal Length |
8mm |
Lens Aperture |
Rear |
φ12.0mm |
|||
|
Max. Aperture Ratio |
1:2.4 |
Distortion |
2/3 type |
-1.87%(y=5.5) |
|||
|
Max. Image Format |
8.8mm x 6.6mm(φ11mm) |
1/1.8 type |
-1.55%(y=4.32) |
||||
|
Operation Range |
Iris |
F2.4/F4.0/F5.6/F8.0/F11.0 |
1/2 type |
-1.427%(y=4.0) |
|||
|
Focus |
0.05m ‐ Inf. |
Back Focal Length |
13.7mm |
||||
|
Control |
Iris |
Fix |
Flange Back Length |
17.526mm |
|||
|
Focus |
Manual |
Mount |
C-Mount |
||||
|
Object Dimension at M.O.D. |
2/3 Type |
5.4cm x 7.4cm |
Filter Size |
M30.5 P=0.5mm |
|||
|
1/1.8 Type |
4.3cm x 5.7cm |
Dimensions |
φ32mm x 45.46mm |
||||
|
1/2 Type |
3.9cm x 5.3cm |
Weight |
62g |
||||
|
Angle of View |
D |
2/3 Type |
69.32° |
1/1.8 Type |
56.9° |
1/2 Type |
53.23° |
|
H |
57.80° |
46.72° |
43.74° |
||||
|
V |
44.36° |
35.75° |
33.23° |
||||
|
Operating Temperature |
-10℃ ‐ +50℃ |
||||||
