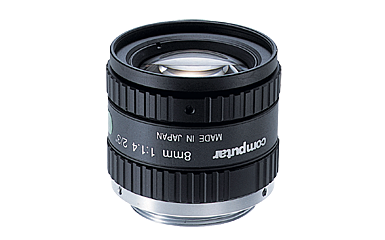

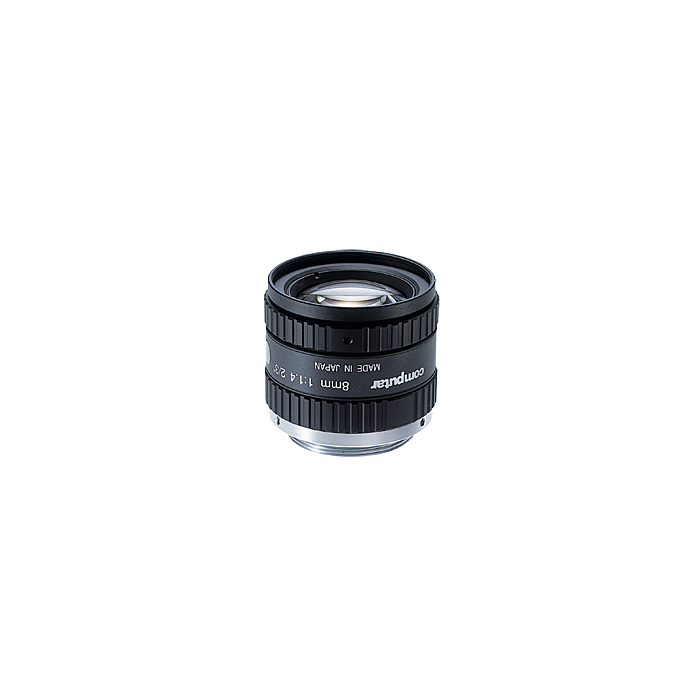

M0814-MP2 (M0814MP2): CBC-Computar 2/3" 8mm f1.4 w/locking Iris & Focus, Megapixel Lens

2/3 type, Megapixel Camera Lens, f=8mm, F1.4.
SKU
M0814-MP2

Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.

Features:

  • Captures full resolution of megapixel cameras
  • Low distortion
  • Assured excellent light intensity even in peripheral areas
  • High contrast and sharp picture in all areas of the screen
  • Compact design
  • Locking set screws for focus and iris
  • Focal Length 8mm
    Max. Aperture Ratio 1 : 1.4
    Max. Image Format 8.8mm x 6.6mm
    Operation Range Iris: F1.4 - F16C
    Focus: 0.1m - Inf.
    Control Iris: Manual
    Focus: Manual
    Object Dimension at M.O.D. 2/3 type: 12.1cm x 9.0cm
    1/2 type: 8.7cm x 6.5cm
    Angle of View 2/3 type : 67.1° (D) / 56.3° (H) / 43.7° (V)
    1/2 type : 51.9° (D) / 42.5° (H) / 32.4° (V)
    Operating Temperature -10°C - +50°C
    Effective lens Aperture Front: 21.5mm
    Rear: 12.0mm
    Distortion 2/3 type: -0.1%(y=5.5)
    1/2 type: -1.1%(y=4.0)
    Back Focal Length 13.1mm
    Flange Back Length 17.526mm
    Mount C-Mount
    Filter Size M30.5 P=0.5mm
    Dimensions 33.5mm x 28.2mm
    Weight 62.6g
