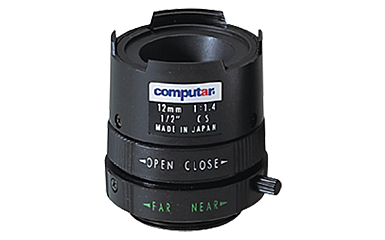

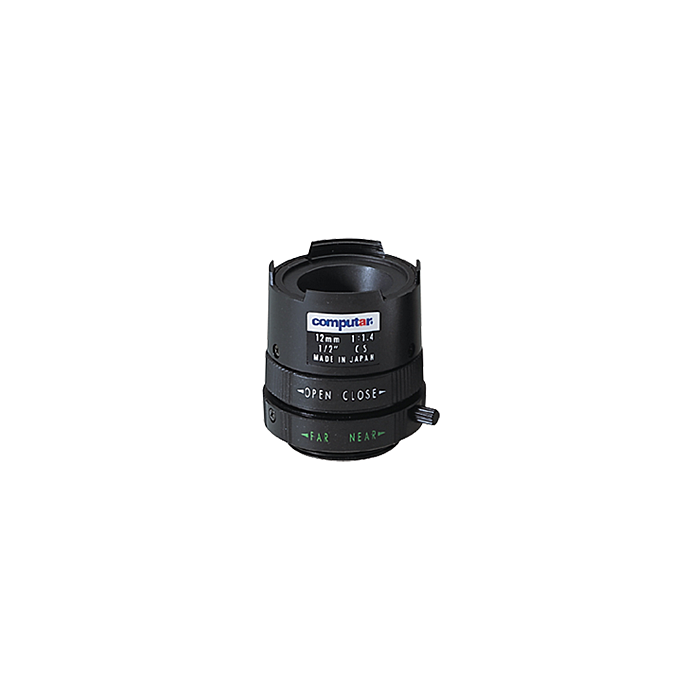

H1214FICS: CBC-Computar 1/2" 12mm f1.4 Monofocal, Manual Iris Lens
1/2 type Cameras, Fixed-focal Manual Iris, CS-Mount, 12mm, F1.4.
SKU
Computar H1214FICS
Computar H1214FICS Monofocal manual iris lenses are an economical choice providing fixed focal lengths and a very simple and compact design.
| Focal Length | 12mm |
| Max. Aperture Ratio | 1 : 1.4 |
| Max. Image Format | 6.4mm x 4.8mm |
| Operation Range | Iris: F1.4 - F16C Focus: 0.3m - Inf. |
| Control | Iris: Manual Focus: Manual |
| Angle of View | 1/2 type : 38.5° (D) / 30.4° (H) / 22.7° (V) 1/3 type : 28.6° (D) / 22.7° (H) / 17° (V) 1/4 type : 21.3° (D) / 17.0° (H) / 12.8° (V) |
| Operating Temperature | -20°C - +50°C |
| Effective lens Aperture | Front: 13.0mm Rear: 8.8mm |
| Back Focal Length | 8.6mm |
| Flange Back Length | 12.5mm |
| Mount | CS-Mount |
| Filter Size | - |
| Dimensions | 34.5mm x 33mm |
| Weight | 33g |
