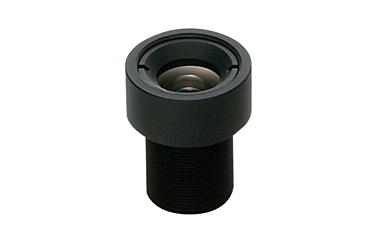

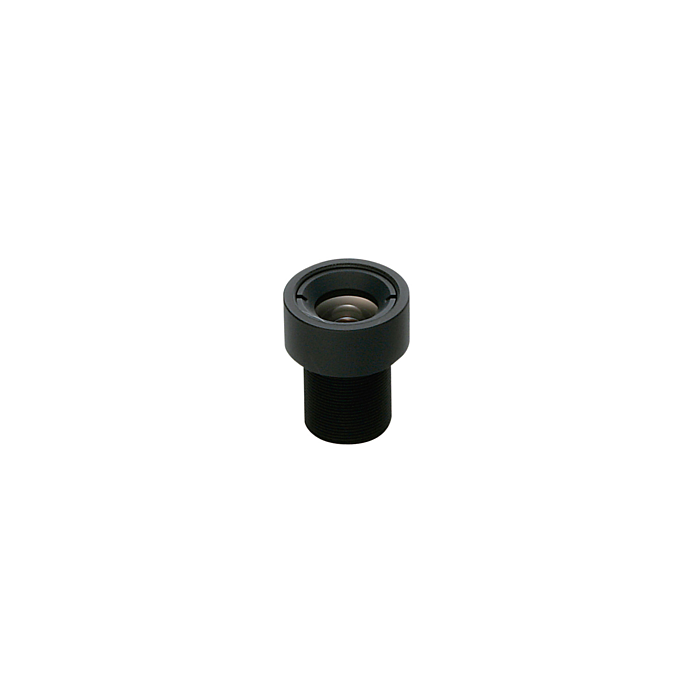

H0924KP: CBC-Computar 1/2" 9mm Board Lens (S-Mount)

1/2 type, Format Board Cameras, No Iris, f = 9.0mm, F2.4, Megapixel lens.
SKU
H0924KP

Features:

  • 1/2" Format
  • 9mm Fixed Lens
  • Over 2MP
  • 39.6° HFOV
  • M12 (S Mount)
  • F2.4
  • Focal Length 9.0mm
    Max. Apeture Ratio 1:2.4
    Max. Image Format 6.4mm x 4.8mm(φ8mm)
    Operation Range Iris: -
    Focus: 0.2m - Inf.
    Object Dimension at M.O.D. 1/2 type: 14.7cm x 11.0cm (φ18.4)
    1/3 type: 11cm x 8.2cm (φ13.8)
    Coating MgF2 Single Coat (All Surfaces λ= 510nm)
    Angle of View 1/2 type: 48.6° (D) x 39.6° (H) x 30.1° (V)
    1/3 type: 37.3° (D) x 30.1° (H) x 22.7° (V)
    1/4 type: 28.3° (D) x 22.7° (H) x 17.1° (V)
    Effective Lens Aperture Front: φ8.5mm
    Rear:  φ8.2mm
    Distortion -1.6% (y=4)
    Back Focal Length 6.58mm
    Flange Back Length  -
    Mount M12 P=0.5mm
    Dimensions φ17.0mm x 20.7mm
    Weight 7.0 g
