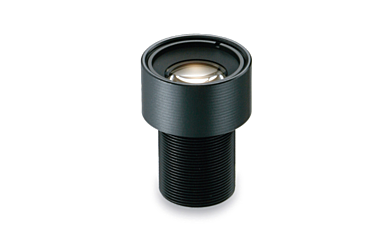

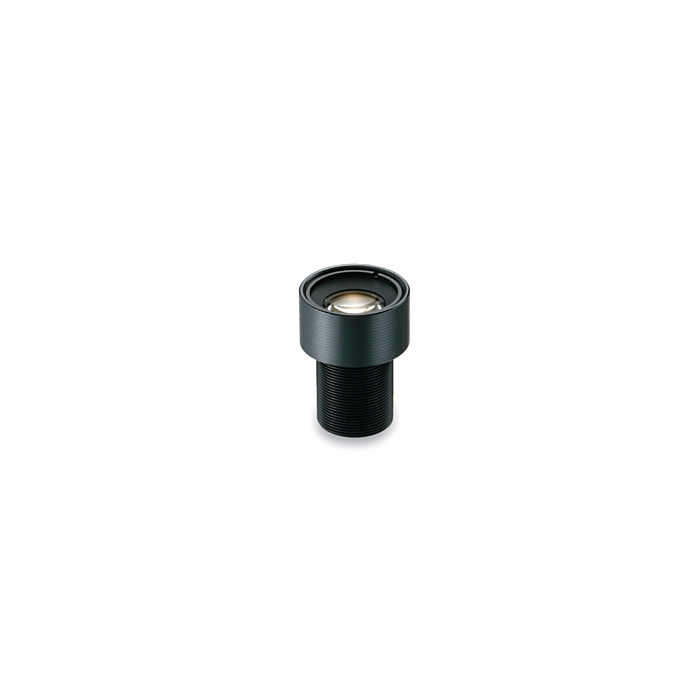

CBC-Computar E1620KV 1/1.8" 16mm Board Lens (S-Mount)

1/1.8 type, Format Board Cameras, No Iris, f = 16.0mm, F2.0, 3 Megapixel lens.
SKU
Computar E1620KV

Features:

  • 1/1.8" Format
  • 16mm Fixed Lens
  • Over 3MP
  • 24.3° HFOV
  • M12 (S Mount)
  • F2.0
  • Focal Length 16.0mm
    Max. Apeture Ratio 1:2.0
    Max. Image Format 6.9mm x 5.2mm(φ8.64mm)
    Operation Range Iris: -
    Focus: 0.15m - Inf.
    Object Dimension at M.O.D. 1/2 type: 5.9cm x 4.4cm (φ7.3)
    1/3 type: 4.4cm x 3.3cm (φ5.5)
    Coating MgF2 Single Coat (All Surfaces λ= 510nm)
    Angle of View 1/1.8 type: 30.02° (D) x 24.26° (H) x 18.44° (V)
    1/2 type: 27.93° (D) x 22.56° (H) x 17.04° (V)
    1/3 type: 21.20° (D) x 17.04° (H) x 12.83° (V)
    Effective Lens Aperture Front: φ9.7mm
    Rear:  φ8.1mm
    Distortion -0.07% (y=4.32)
    Back Focal Length 12.06mm
    Flange Back Length  -
    Mount M12 P=0.5mm
    Dimensions φ17.0mm x 23.1mm
    Weight 6.0 g
