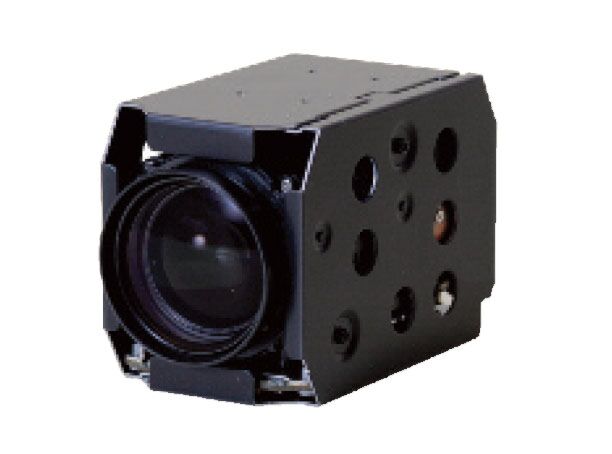

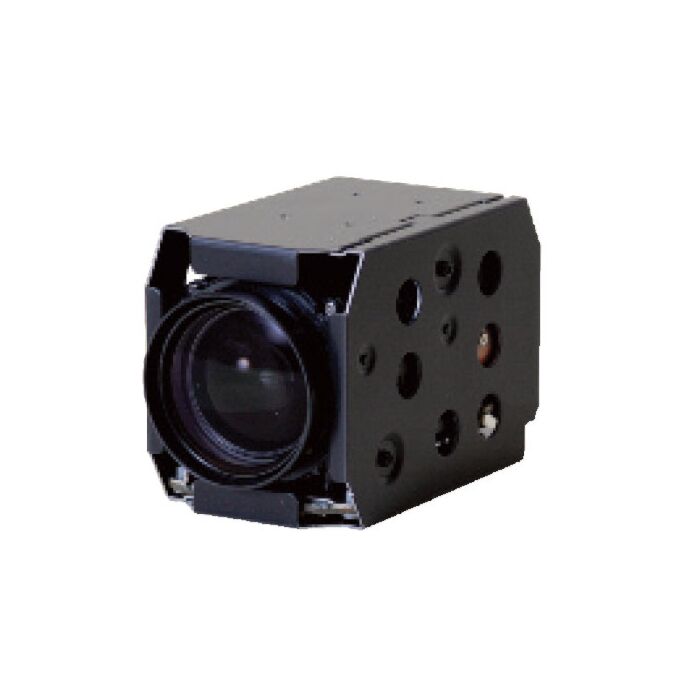

Computar CBM-SA3300 960H 1/3” CCD 30x 5-150mm
1/3” CCD 30x 5-150mm Day/Night, WDR, 3D DNR Defog, Motion Optimized
SKU
Computar CBM-SA3300
Features:
| Optics | 960H 30x Optics |
| Image Sensor | 1/3" Interline CCD |
| Model | ICX672 (Sony) |
| DSP | CXD4130 (Sony) |
| Effective Pixels (H x V) | NTSC (976x494) |
| Resolution | 650 TVL |
| Video Output | CVBS:1.0Vp-p Y/C |
| Horizontal Angle View | 50.4 ～ 1.8 |
| Sync. System | inter-sync |
| Minimum Illumination | 0.002 lx(ICR ON) |
| S/N Ratio | >50dB |
| Minimum Distance | 100mm ～ 1000mm |
| Electronic Shutter | 1/60 ~ 1/10000 |
| White Balance | Auto/Indoor/Outdoor/Push/ Atw/Manual |
| Operation Interface | VISCA Protocol |
| Lens | 30x Optical Zoom, Inner Focus f=5.0mm ～ 150mm F1.6 ～ F4.8 |
| Electronic Zoom | 12X |
| Zoom Moving Time | 3.8sec (Focus Tracking ON) |
| Operating Temperature / Humidity | 32ﾟF ～ 140ﾟF 0% ~ 95% |
| Storage Temperature / Humidity | -4ﾟF ～ 140ﾟF 10% ～ 90% |
| Power Source | DC12V ± 10% |
| Power Consumption | 3.2W (Max) |
| Weight | 0.6 lbs / 260g |
| Dimensions | 1.97” x 2.36” x 3.82” / 50mm x 60mm x 97mm |
|
CBM-SA3300 Functions |
|
| Privacy Mask | Maximum 8 points |
| Vertical Flip Function | Yes |
| Horizontal Flip Function | Yes |
| Alarm Output | No |
| Sensor Input | No |
| WDR | On/Off |
| Sharpness | Selectable 16 steps |
| Color Gain Control | Selectable 8 steps |
| OSD | Yes |
| Camera Title | Yes |
| Motion Detection | No |
| Noise Reduction | 3D DNR |
| Position Preset | No |
| Other | with Defog function |
