AG4Z1214FCS-MPIR (AG4Z1214FCSMPIR): CBC-Computar 3 Megapixel 1/2.7-12.5-50 mm F1.4 Varifocal (CS-Mount)

"A" Series 3 Megapixel, 1/2.7" 12.5-50mm F1.4 Varifocal, HD Series, DC Auto-iris (CS Mount) Day/Night IR.
SKU
AG4Z1214FCS-MPIR

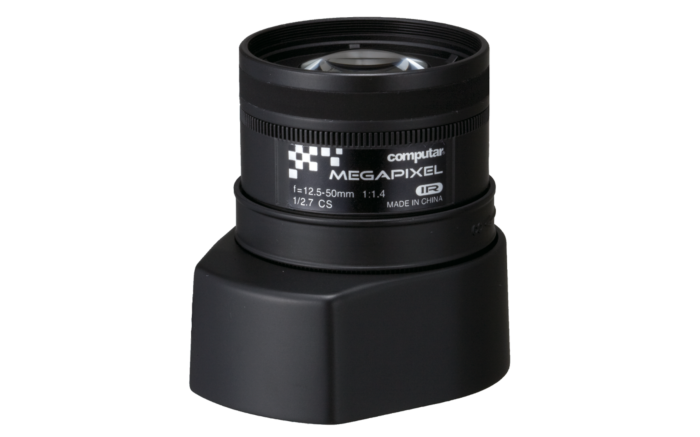

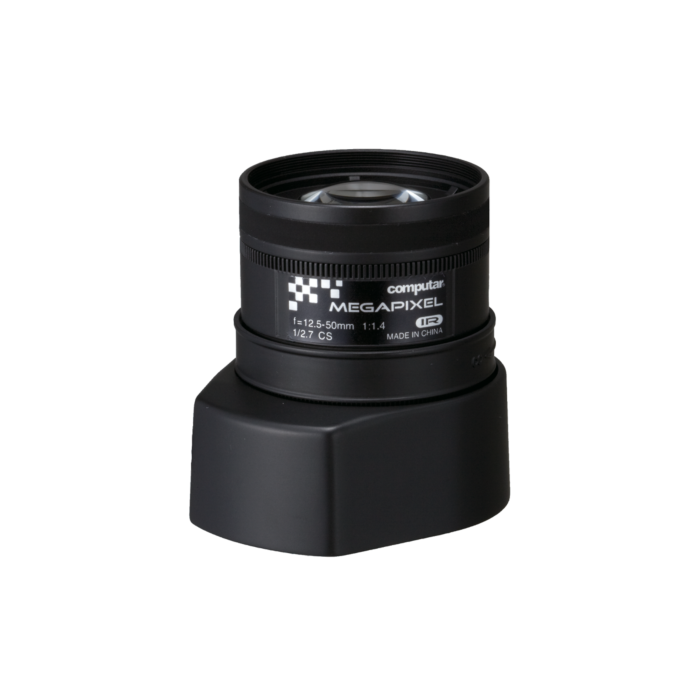

The Computar AG4Z1214FCS-MPIR is a professional grade, CS-Mount 1/2.7" format 3 megapixel DC Auto Iris Varifocal lens that offers a 12.5-50mm focal length, IR correction for True Day/Night capability, and precision corner brightness. AG4Z1214FCS-MPIR offers a unique HD optical design that provides larger image circle and clarity in corners and throughout the image plane.

Features:

  • 1/2.7” Format
  • 3 Megapixel
  • 12.5-50mm Varifocal
  • Full HD Format
  • DC Auto-iris
  • Precise Focus Adjustment
  • New Focus Lock System
  • IR Corrected Optics
  • Corner Brightness
  • Manual iris and P-iris models also available


  • Applications:

  • Low Light Conditions
  • Sports/Action Photography
  • Broadcast TV Photography
  • Outdoor Photography
  • Focal Length 12.5 to 50 mm
    Max. Aperture Ratio 1:1.4
    Max. Image Format 3.2 x 5.8 mm (ø6.6 mm)
    Operation Range Iris: F1.4 to F360C
    Focus: 1.0 m to infinity
    Zoom: 12.5mm - 50mm
    Control Iris: DC Auto Iris
    Focus/Zoom: Manual
    Angle Of View 30.3 to 7.7° (D), 26.3 to 6.7° (H), 14.5 to 3.8° (V)
    Coil Drive - 190 ohms/20°C
    Control - 855 ohms/20°
    Operating Temperature -10 to 50°C
    Effective Lens Aperture Front: ø21.7 mm
    Rear: ø9.1 mm
    Back Focal Length Tele: 7.3 mm
    Wide: 11.6 mm
    Flange Back Length 12.5 mm
    Mount CS-Mount
    Filter Size M43 P=0.75mm
    Dimensions (W x H x D) 46 x 59.3 x 58.4 mm
