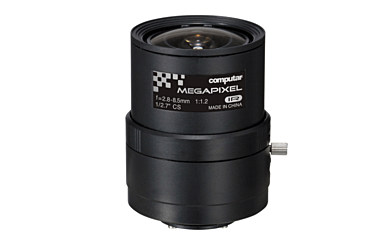

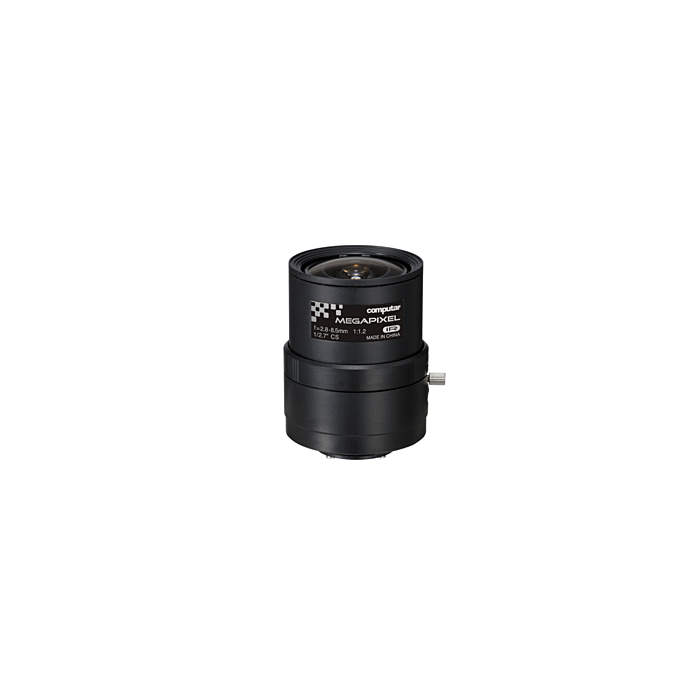

A3Z2812CS-MPWIR (A3Z2812CSMPWIR): CBC-Computar 1/2.7 type Megapixel Cameras, Vari‐focal Manual Iris (CS-Mount)

3X, 2.8mm‐8.5mm, F1.2, Day & Night
SKU
Computar A3Z2812CS-MPWIR

Features:

  • 1/2.7” Format
  • 5 Megapixel
  • 2.8-8.5mm Varifocal
  • Full HD Format
  • Manual Iris
  • Precise Focus Adjustment
  • IR Corrected Optics
  • Corner Brightness
  • DC Auto Iris and P-iris models also available
  • Focal Length 2.8mm - 8.5mm
    Max. Aperture Ratio 1 : 1.2
    Max. Image Format 3.2mm x 5.8mm
    Operation Range Iris: F1.6 - F16C
    Focus: 0.5m - Inf.
    Zoom: 2.8mm - 8.5mm
    Control Iris: Manual
    Focus: Manual
    Zoom: Manual
    Angle of View 1/2.7 type : 150.4°‐ 47.1° (D) / 124.7°‐ 41.3° (H) / 63.9°‐ 22.7° (V)
    1/3 type : 130.4°‐ 42.8° (D) / 99.1°‐ 34.1° (H) / 72.3°‐ 25.6° (V)
    1/4 type : 92.1°- 32.0° (D) / 72.3°- 25.6° (H) / 53.5°- 19.1° (V)
    Operating Temperature -10°C - +50°C
    Effective lens Aperture Front: 24.8mm
    Rear: 8.4mm
    Back Focal Length 7.3mm
    Flange Back Length 12.5mm
    Mount CS-Mount
    Filter Size -
    Dimensions 43.6mm x 59mm
    Weight 64g
