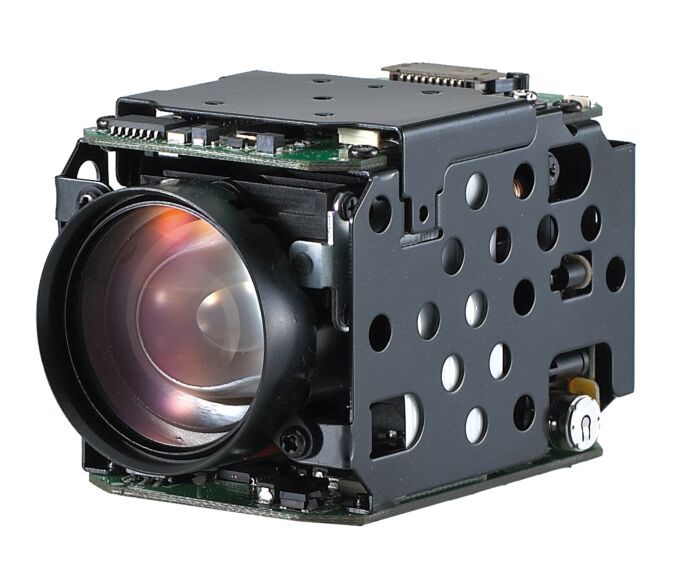

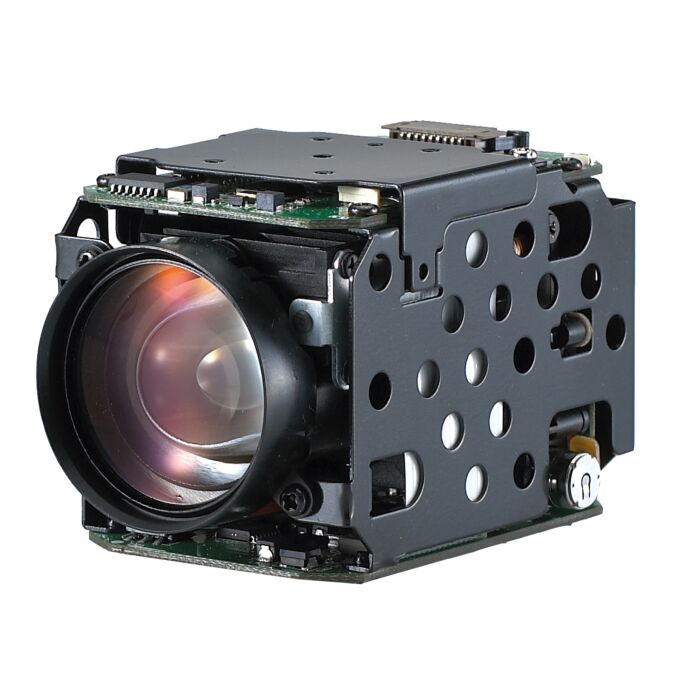

CNB ZCB-20Z12F 12x Zoom Color Block Camera

768 pixels x 494p, 1/4" IT CCD, 12x zoom, Block Camera.
SKU
CNB ZCB-20Z12F

Features:

  • 1/4 inch IT CCD
  • High Resolution : 550 TV Lines
  • Built-in Auto Iris / Auto Focus
  • 12x Optical Power Zoom Lens
  • 12x Digital Zoom (Max. 144x)
  • WDR (Wide Dynamic Range)
  • TDN(ICR), Digital Slow Shutter (DSS)
  • 3D-DNR, OSD
  • Privacy Zone, Motion Detection, D-Effect
  • RS-232 TTL Interface
  • 12VDC
  • Signal System NTSC
    Scanning System 2:1 Interlace
    Scanning Frequency(H) 15.734kHz
    Scanning Frequency(V) 59.94Hz
    Image Sensor 1/4" IT CCD
    Sync. System Internal
    Total Pixels Number 811(H) x 508(V) 410K
    Effective Pixels Number 768(H) x 494(V) 380K
    Horizontal Resolution 550 TV Lines (B/W 600 TV Lines)
    Video Output Level 1.0 Vp-p (75Ω , Composite)
    S/N Ratio More than 52dB (AGC Off)
    Digital Zoom Ratio 12x
    Lens 12x Zoom Video AF (f=3.68~43.53mm, F1.6(W)- F1.99(T))
    Iris Control Auto/Manual (0~100)
    Min. Illumination Day Mode: 0.1Lux
    Night Mode: 0.0002Lux(DSS On)
    Day & Night System Electronic Sensitivity-up (DSS), ICR(AGC type)
    White Balance AWB / ATW / Push / Manual / Indoor / Outdoor
    AGC Off / High / Middle / Low / Manual (0dB~32dB)
    BLC High / Middle / Low
    Digital Slow Shutter Off/2FLD~128FLD Mode
    OSD Menu English
    WDR (Wide Dynamic Range) W-Front / W-Center / W-Rear / W-User (Long & Short)
    3D-DNR Off / Auto (2~128)
    Sharpness Control 0~100
    Eclipes Function On / Off (16 Zones)
    Privacy Zone On/Off (8 Zones)
    Brightness Control 0~100
    Motion detection On/Off (4 Zones)
    Stabilizer On / Off
    D-Effect Mirror / V-flip / Rotate
    Electronic Shutter Speed 1/60 ~ 1/90,000 sec.
    Control RS-232 (TTL)
    Protocol CNB-ASCII/CNB-HEX/PELCO-D/PELCO-P/SONY-VISCA
    Operating Temperature/Humidity -10˚C ~ 50˚C (14˚F ~ 122˚F) / 20% ~ 60% RH
    Power Voltage DC 12V (±20%)
    Power Consumption Max. 4.32W/360mA
    Dimensions 40(W) x 43.7(H) x 65(D) mm
