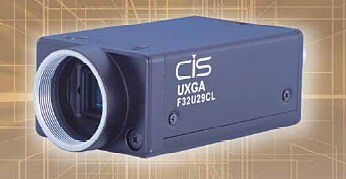

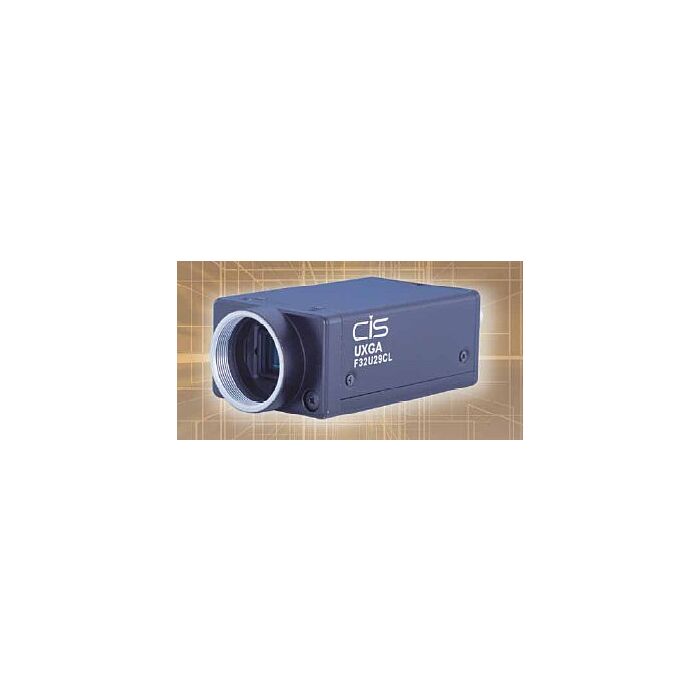

  • CIS Americas | VCC-F32S29CL | CL Camera Image #1

CIS Americas VCC-F32 Series VCC-F32S29CL

Quick Overview

VCC-F32U29CL, VCC-F32S29CL, VCC-F32S19CL High-speed, color RAW, digital camera.

At up to 2 Megapixels and 38 frames per second- all while outputting 24-bit digital color RAW data, the F32 Series is ideal for high-speed inspection applications.


  • High Resolution
  • High Frame Rate
  • C Mount
  • Mini Camera Link Connector
  • External Trigger Shutter
  • Pulse-width Trigger
  • Slow Shutter
  • Partial Scan
  • Specifications
      VCC-F32U29CL VCC-F32S29CL VCC-F32S19CL
    Resolution UXGA SXGA SXGA
    Sensor Type 1/1.8"CCD 1/2"CCD 2/3"CCD
    Power Consumption 4.0W
    Input Voltage DC+12V±10 % (Max. voltage not to exceed 15V)
    Oparating Conditions Temperature 0ºC~+40ºC    Humidity 20~80 %
    Weight Approx.140g
    Lens Mount C Mount
    Optical Axis Accuracy Less than (Pixel Center)±0.1mm
    Video Output Signal Digital RGB24bit/Digital RAW Data 8bit/10bit (switchable)
    Effective Number of Pixels 1628(H)×1236(V) 1392(H)×1040(V) 1392(H)×1040(V)
    Horizontal Scan Frequency 37.5KHz 40.22KHz 36KHz
    Pixel Clock 72MHz
    Pixel Size 4.4×4.4(µm) 4.65×4.65(µm) 6.45×6.45(µm)
    Minimum Illumination F1.4 40lx F1.4 90lx F1.4 0.5lx
    Sensitivity F5.6 2000lx F2.8 2000lx F16 2000lx
    Standard Color Temperature 3200ºK
    Gain Switching 0dB, +6dB, MANUAL (min-1dB~max+12dB)
    Electronic Shutter OFF~1/10000sec.
    Sync. Method Internal Sync.    External Sync. HD/VD
    External Trigger Fixed Shutter Exposure/Pulse Width Exposure
    Partial Scan Programmable Position/Width/Read Position/Number of Lines
    Gamma Compensation Default OFF
    Control Interface Camera Link/RS232C (Optional)
    Dimensions 44mm×29mm×71.5mm (excluding projection)
