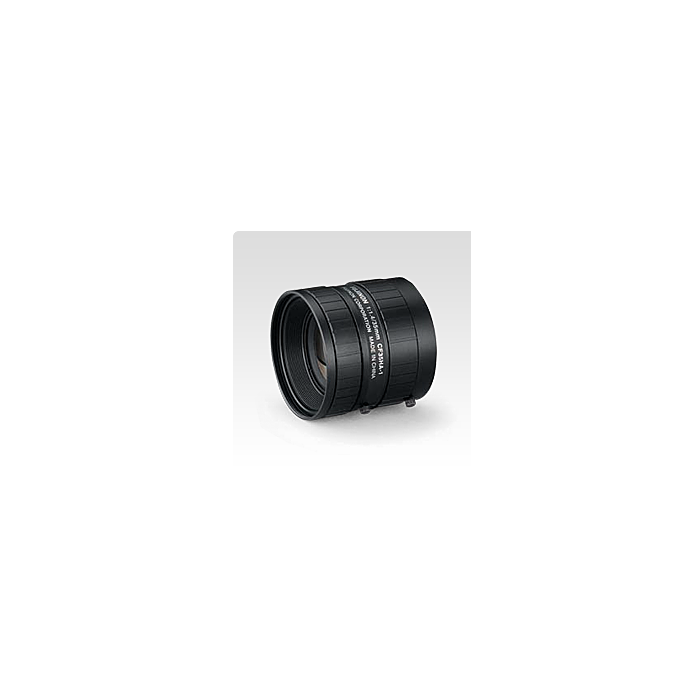

CF35HA-1 (CF35HA1): Fujinon 1" 35mm 1.5 Megapixel Lens (C-Mount)

Fujinon CF35HA-1 Low Maginification 1" Fujinon video lenses, ideal for the growing number of Machine vision applications.
SKU
CF35HA-1

Fujinon CF35HA-1 1" 35mm Industrial Manual Lens for C-Mount Machine Vision Cameras built with a High-resolution design, providing support for up to 1.5 megapixel camera.



Features:



  • Format: 1"
  • Focal Length: 35mm
  • Aperture: F1.4
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •


    Applications:



  • Machine Vision
  • industrial Imaging
  • Focal Length 35mm
    Iris Range F1.4-F22
    Angle of View
    20.3° x 15.3°(1")
    Focus range (from front of the lens) (mm) ∞-200
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M49x0.75
     TV Distortion (%) 0.18
    Mount C-Mount
    Sensor Size (max.) 1"
    Weight 180g
