  • CF16HA-1 Image #1

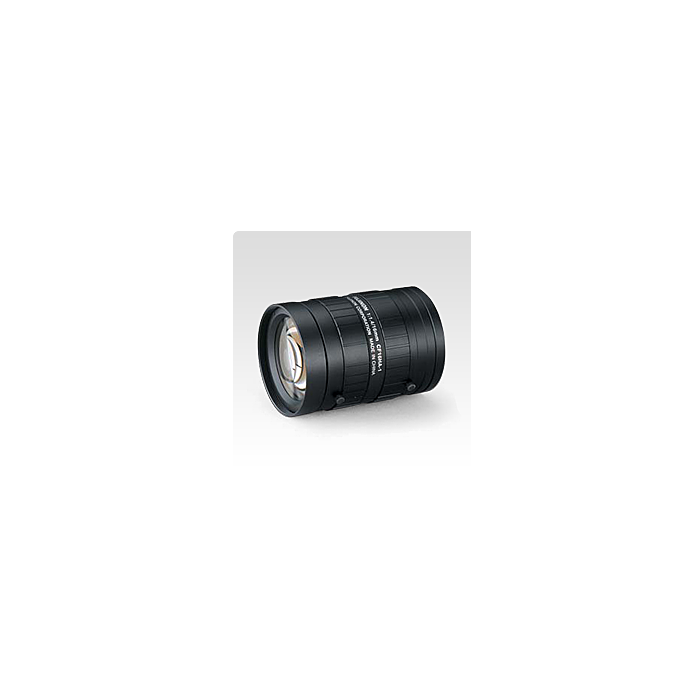

CF16HA-1: Fujinon 1" 16mm 1.5 Megapixel Lens (C-Mount)

Quick Overview

Fujinon CF16HA-1 1" 16mm Industrial Manual Lens for C-Mount Machine Vision Cameras and industrial applications.
Overview

CF16HA-1 has a Focal length of 16mm for 1" ~ 1/2" cameras and includes locking knob for iris and focus.



Features:



  • Format: 1"
  • Focal Length: 16mm
  • Aperture: F1.4
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •


    Applications:



  • Machine Vision
  • Industrial Inspection
  • Industrial Imaging
  • Specifications
    Focal Length 16mm
    Iris Range F1.4-F22
    Angle of View
    42.6° x 38.2°(1")
    Focus range (from front of the lens) (mm) ∞-100
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M49x0.75
     TV Distortion (%) 0.79
    Mount C-Mount
    Sensor Size (max.) 1"
    Weight 280g
