  • CF12.5HA-1 Image #1

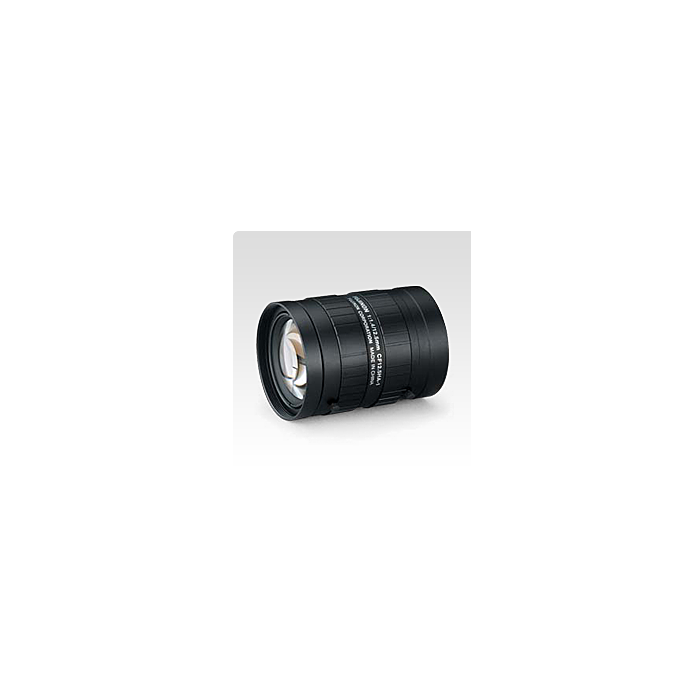

CF12.5HA-1: Fujinon 1" 12.5mm 1.5 Megapixel Lens (C-Mount)

Quick Overview

Fujinon CF12.5HA is built for C-Mount Machine Vision Cameras used in industrial applications.
Overview

The CF12.5HA-1's rear focusing system provides improved performance in macro photography.



Features:



  • Format: 1"
  • Focal Length: 12.5mm
  • Aperture: F1.4
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •


    Applications:



  • Machine Vision
  • Industrial Imaging
  • Specifications
    Focal Length 12.5mm
    Iris Range F1.4-F22
    Angle of View
    53.1° x 41.2°(1")
    Focus range (from front of the lens) (mm) ∞-100
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M49x0.75
     TV Distortion (%) 0.86
    Mount C-Mount
    Sensor Size (max.) 1"
    Weight 290g
    No Video available

    CF12.5HA-1
