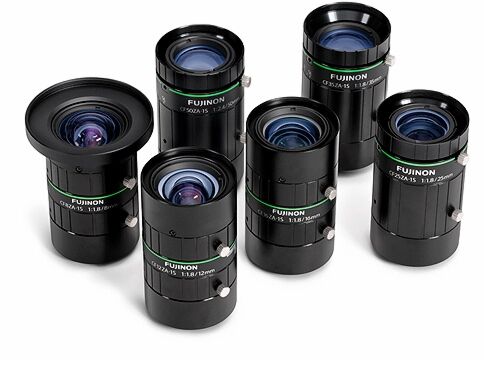

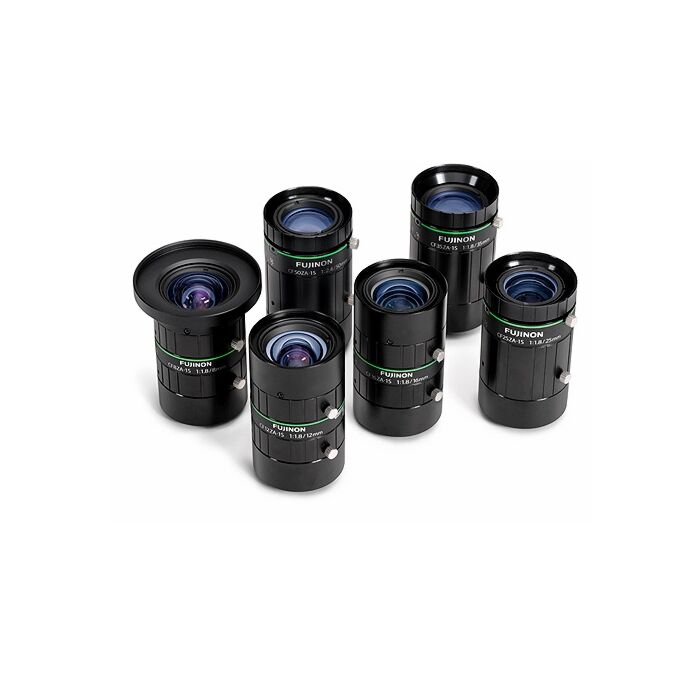

CF-ZA-1S (CFZA1S) series: Fujinon Machine Vision Camera Lenses

CH-ZA series are bright lenses from the center to the corner. Therefore. correction of the peripheral light intensity is unnecessary in all applications. Moreover. it prevents false recognition of noise caused by electronic correction. They are ideal for efficient and reliable inspection applications. that noise caused by correction is generated. It is ideal for efficient and reliable inspection applications.

$0.00 Please call for pricing

SKU

CF-ZA-1S series: Fujinon Machine Vision Camera Lenses

Overview

The CF-ZA-1S series of lenses achieve high relative illumination of 90% or more. Achieves a high relative illumination of 80%or more. (Final image through CMOS sensor) That was achieved by making the CRA (Chief Ray Angle) less than 5 degrees from our original optical design.

Features:

Less than 1 Oum optical axis shift under 10G shock.

By passing IEC 60068-2-6 test. the resolution is maintained.

Focus" and "Iris" can be adjusted even though the lenses still meet the Anti Shock and Vibration requirements.

Applications:

Machine Vision

Specifications

CF8ZA-1S

Focal length [mm]	8
Iris range (F. no)	F1.8-F16
Angle of view	85.7°×67.5°
Working Distance*1（mm）	∞‐100
Operation of focus	Manual
Operation of iris	Manual
Filter thread [mm]	M52 x 0.75
Mount	C-mount
Weight (approx.) [g]	180
Sensor size(std.)	1.1"(2.5μm)
CRA (Chief Ray Angle)	4.5
TV distortion [%]	-4.81
Dimension [mm]	Φ54×67

CF12ZA-1S

Focal length [mm]	12
Iris range (F. no)	F1.8-F16
Angle of view	62.5°×47.8°
Working Distance*1（mm）	∞‐100
Operation of focus	Manual
Operation of iris	Manual
Filter thread [mm]	M37.5 x 0.5
Mount	C-mount
Weight (approx.) [g]	180
Sensor size(std.)	1.1"(2.5μm)
CRA (Chief Ray Angle)	4.5
TV distortion [%]	-2.82
Dimension [mm]	φ39×67.6

CF16ZA-1S

Focal length [mm]	16
Iris range (F. no)	F1.8-F16
Angle of view	47.3°×36.1°
Working Distance*1（mm）	∞‐100
Operation of focus	Manual
Operation of iris	Manual
Filter thread [mm]	M37.5 x 0.5
Mount	C-mount
Weight (approx.) [g]	180
Sensor size(std.)	1.1"(2.5μm)
CRA (Chief Ray Angle)	4.9
TV distortion [%]	-0.80
Dimension [mm]	φ39×67.6

CF25ZA-1S

Focal length [mm]	25
Iris range (F. no)	F1.8-F16
Angle of view	32.9°×24.8°
Working Distance*1（mm）	∞‐100
Operation of focus	Manual
Operation of iris	Manual
Filter thread [mm]	M37.5 x 0.5
Mount	C-mount
Weight (approx.) [g]	170
Sensor size(std.)	1.1"(2.5μm)
CRA (Chief Ray Angle)	2.7
TV distortion [%]	-0.83
Dimension [mm]	φ39×67.3

CF35ZA-1S

Focal length [mm]	35
Iris range (F. no)	F1.8-F16
Angle of view	23.0°×17.3°
Working Distance*1（mm）	∞‐200
Operation of focus	Manual
Operation of iris	Manual
Filter thread [mm]	M37.5 x 0.5
Mount	C-mount
Weight (approx.) [g]	165
Sensor size(std.)	1.1"(2.5μm)
CRA (Chief Ray Angle)	4.5
TV distortion [%]	-0.32
Dimension [mm]	φ39×67.3

CF50ZA-1S

Focal length [mm]	50
Iris range (F. no)	F2.4-F16
Angle of view	16.6°×12.5°
Working Distance*1（mm）	∞‐200
Operation of focus	Manual
Operation of iris	Manual
Filter thread [mm]	M37.5 x 0.5
Mount	C-mount
Weight (approx.) [g]	155
Sensor size(std.)	1.1"(2.5μm)
CRA (Chief Ray Angle)	4.8
TV distortion [%]	-0.17
Dimension [mm]	φ39×68
