  • CBC-Computar TH17V1311-34 Image #1

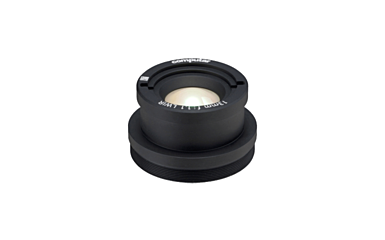

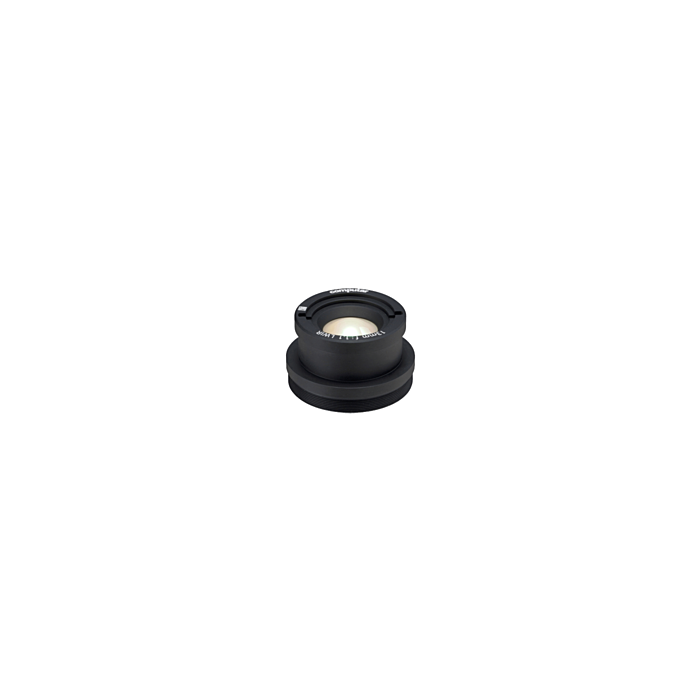

CBC-Computar TH17V1311-34 13mm Zinc Sulfide Thermal Lens (M25 Mount)

Quick Overview

Specifically designed for OEM customers imaging high volume applications.
Overview

Computar Thermal Lens Series TH17V1311-34



Features:



  • 13mm Zinc Sulfide Thermal Lens
  • Cost effective lens for high volume application
  • Designed for uncooled IR sensors
  • Optimized for the 8-12μm wavelength range
  •


    Applications:



  • Industrial Imaing
  • Industrial Inspection
  • Machine Vision
  • Specifications
    Model  TH17V1311-34
    Focal Length 13mm
    #/F 1.1
    Horizontal Filed of View 50.3 (A)/36.2 (B)
    Image Circle 13.6mm
    Focus Adjustment Manual
    Lens transmission (average) 0.78
    Coating Type AR Coating*1
    Lens Mount M25
    Operating Temperature -40oC to +80oC
    No Video available

    TH17V1311-34
