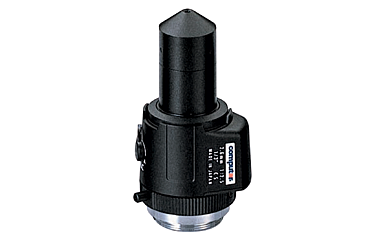

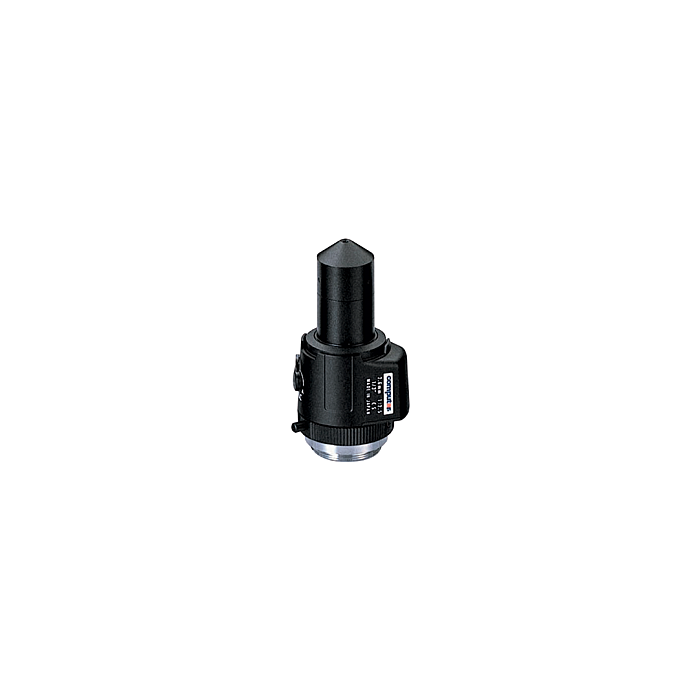

CBC-Computar TG2625AFCS-P (TG2625AFCSP) 1/3" 2.6mm f2.5 Pinhole, Video Auto Iris Lens (CS-Mount)

Computar Lens TG2625AFCS-P 1/3" 2.6mm f2.5 Pinhole, Video Auto Iris Computar Pinhole lenses are engineered for discrete or covert surveillance.

$0.00 Please call for pricing

SKU

CBC-Computar TG2625AFCS-P

The TG2625AFCS-P tapered lens tip requires only an 1/8" hole to operate.

Features:

Model Number - TG2625AFCS-P

Formerly sold as CML26-VI-P

2.6mm F2.5 Lens

Pinhole

Auto Iris

Video Drive

CS-Mount

Applications:

Covert Surveillance

Discreet Surveillance

Hidden Security

Model	TG2625AFCS-P
Focal Length	2.6mm
Max. Aperture Ratio	1:2.5
Max. Image Format	4.8mm x 3.6mm(6mm)
Operation Range	Iris-F2.5 - F360C Focus-0.2m - Inf
Control	Iris-Manual Focus-Manual
Object Dimension at M.O.D.	35.5cm x 26.7cm
Supply Voltage	DC8V - DC16V
Response Time	Approx. 2 sec
Light Weighting Method	Adjustable between Average - Peak (to be Set at Average at Factory)
Input Signal	Video Signal (V. or V.S.)
Iris Accuracy	15% at Video Signal Level
Sensitivity Adjustment	0.5V(p-p) - 1.0V(p-p) (Video Signal)
Input Impedance	High Impedance
Operating Temperature	10C - 50C
