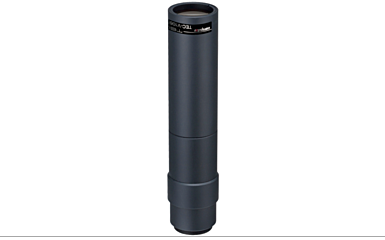

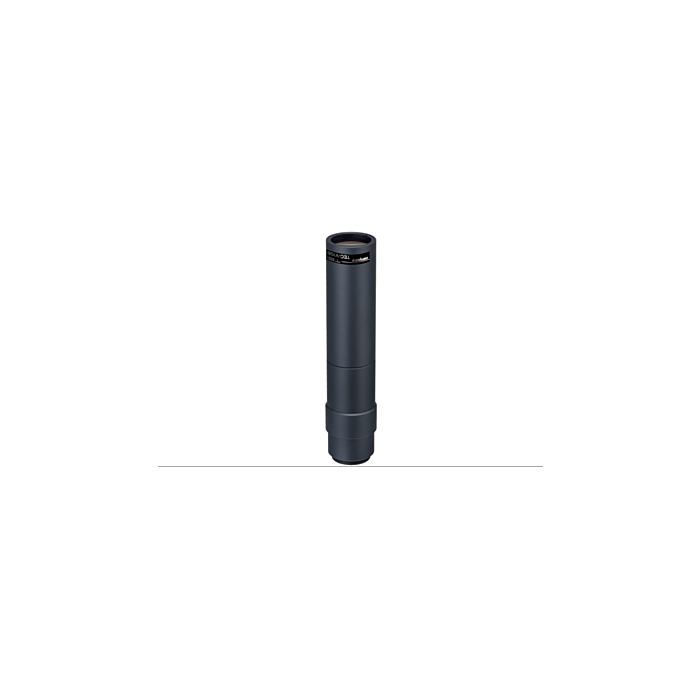

TEC-V1065MPW (TECV1065MPW): CBC-Computar 5MP, 1" 65.2mm, Telecentric Lens, 1.0x magnification (C Mount)

The TEC-V1065MPW is a 1" 65mm fixed lens, that is compatible with 5MP sensors on 1 " camera.
SKU
5MP, 1" 65.2mm, Telecentric Lens, 1.0x magnification (C Mount)

5MP, 1" 65.2mm, Telecentric Lens, 1.0x magnification (C Mount)



Features:



  • Compatible with 5MP sensors on 1 " cameras
  • Designed for 65.2mm working distance
  • 1.0x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.02s%)
  •


    Applications:



  • Machine Vision
  • Industrial Imaging
  • Industrial Inspection
  • Model TEC-V1065MPW
    Magnification 1.0x
    Working Distance 65.2mm
    Effective F Number 9.0
    Max. Image Format φ16mm
    Field of View 12.8mm(H) x 9.6mm(V) 1"
    Resolving Power *1 6.0µm
    Depth of Field *2 0.72mm
    TV Distortion 1 Type -0.023%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C-Mount
    Dimensions φ31mm x 143.8mm
    Weight 158g
    Operating Temp. -10℃ - +50℃
