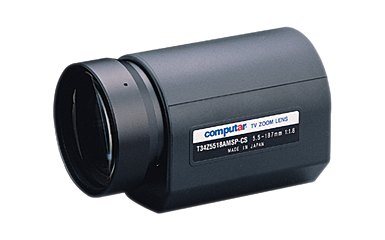

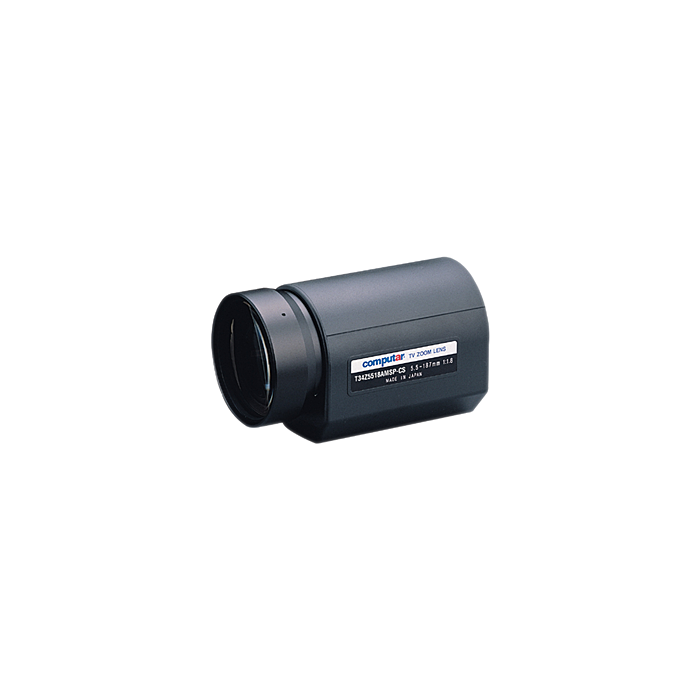

T34Z5518AMSP: CBC Computar 1/3" 5.5-187mm f1.8 34X Motorized Zoom, Video Auto Iris w/spot & preset (CS Mount)
Computar's T34Z5518AMSP is a 5.5-187mm (34X optical) motorized zoom lens featuring 1/3-inch lens format, CS lens mount, video auto iris, F1.8 aperture, (spot) filter, and preset positioning.
SKU
T34Z5518AMSP
Computar T34Z5518AMSP 1/3" 5.5-187mm (34X) F1.8 Motorized Zoom & Focus w/ Video Auto-Iris CS-Mount Lens, Spot Filter, Presets (Zoom & Focus).
Features:
Applications:
| Model |
T21Z5816MSP |
| Focal Length | 5.5mm - 187mm |
| Max. Aperature | 1:1.8 |
| Max Image Format | 4.8mm x 3.6mm(6mm) |
| Operation Range | Iris=F1.8 - F560C Focus=1.5m - Inf. Zoom=5.8mm - 187mm |
| Control | Motorized/Preset Focus, Zoom Video Auto Iris |
| Supply Voltage | DC8.5V -DC16V |
| Effective Lens Aperature | Front 70.0mm Rear 9.1mm |
| Back Focal Length | 12.7mm |
| Flange Back Length | 12.5mm |
| Mount | CS-Mount |
| Filter Size | M77 P0.75mm |
| Dimensions | W82mm x H97.4mm x D160mm |
| Weight | 1190g |
